Repair Procedures: Inspection

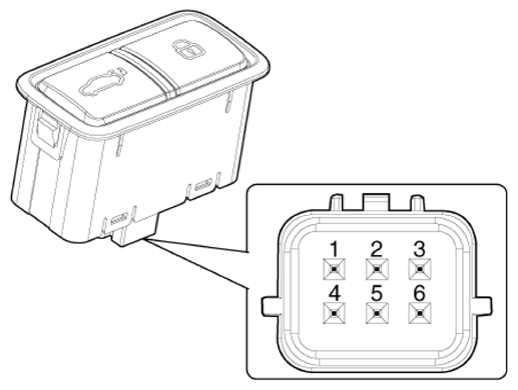

  1. Remove the trunk inner switch.

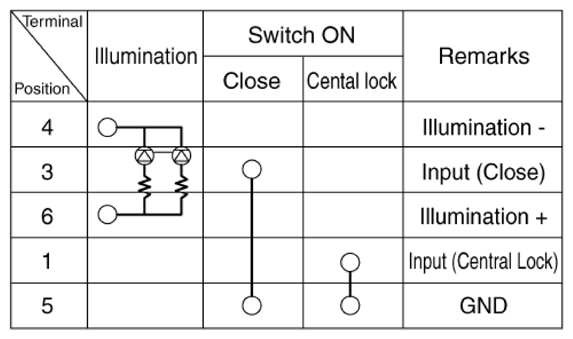

  2. Check for continuity between terminals of the trunk inner switch.
    G16832593Courtesy of HYUNDAI MOTOR AMERICA
    G16832594Courtesy of HYUNDAI MOTOR AMERICA
