Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

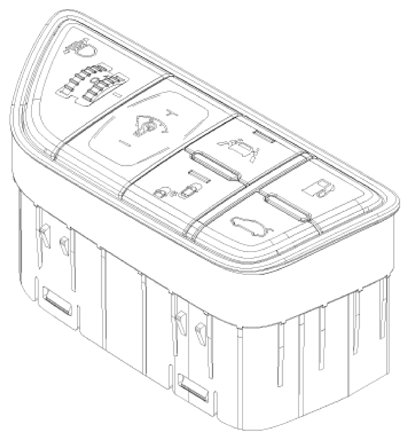

Connector	Pin NO	Description	Pin NO	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Battery (+}	9	Fuel signal
	2	IGN	10	-
	3	ILL (+)	11	Rheostat (UP) signal
	4	-	12	Rheostat (Down} signal
	5	-	13	Trunk signal
	6	-	14	-
	7		15	ILL (-)
	8	-	16	Ground
