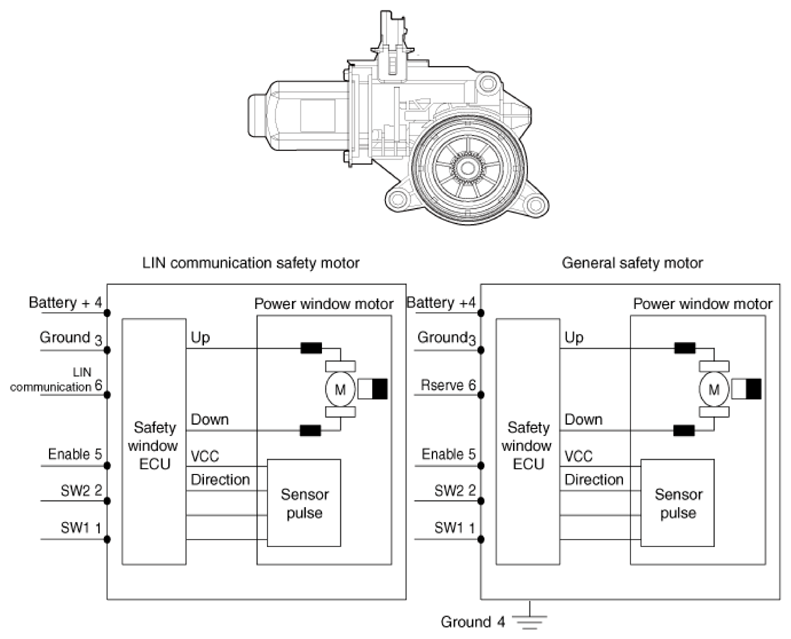

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin	Description	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Switch 1	4	Beatty (+)
	2	Switch 2	5	Enable
	3	Ground	6	Reserve
