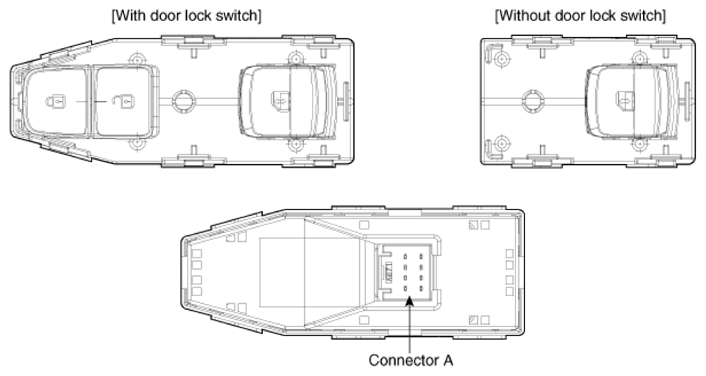

Assist power window switch
| Connector A | With door lock | Without door lock | ||
|---|---|---|---|---|
| Pin | Description | Pin | Description | |
| 1 | Illumination (-} | 1 | Illumination (-) | |
| 2 | Door look switch output | 2 | - | |
| 3 | Door unlock switch output | 3 | - | |
| 4 | Illumination (+) | 4 | Illumination (+) | |
| 5 | Ground | 5 | Ground | |
| 6 | - | 6 | - | |
| 7 | Assist safety power window | 7 | Assist safely power window | |
| 8 | - | 8 | - | |
