Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
    CAUTION:
    • Wait at least 30 seconds after separating the cable.

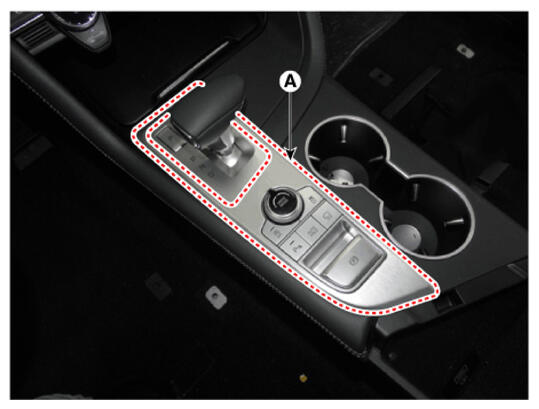

  2. Using the screw or remover, remove the console upper cover (A).
    G16831431Courtesy of HYUNDAI MOTOR AMERICA

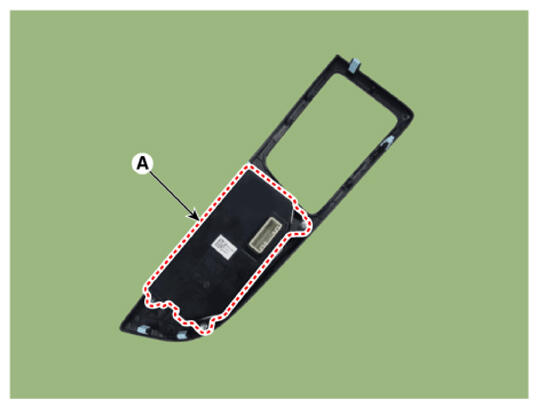

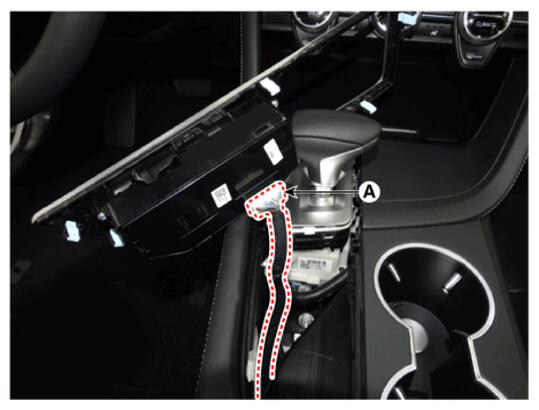

  3. Disconnect the connector (A).
    G16831432Courtesy of HYUNDAI MOTOR AMERICA

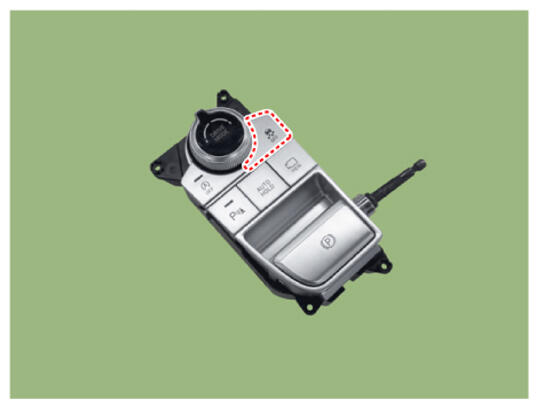

  4. Disconnect the screw and then ESP OFF switch (A).
G16831433Courtesy of HYUNDAI MOTOR AMERICA
G16831434Courtesy of HYUNDAI MOTOR AMERICA
