Repair Procedures: Removal
- Turn the ignition switch OFF.
- Open the tail gate.

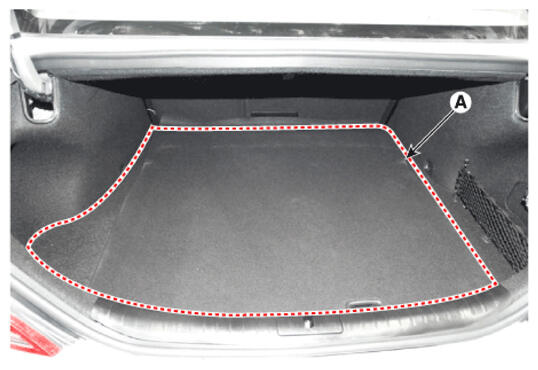

- Remove the luggage covering mat (A).

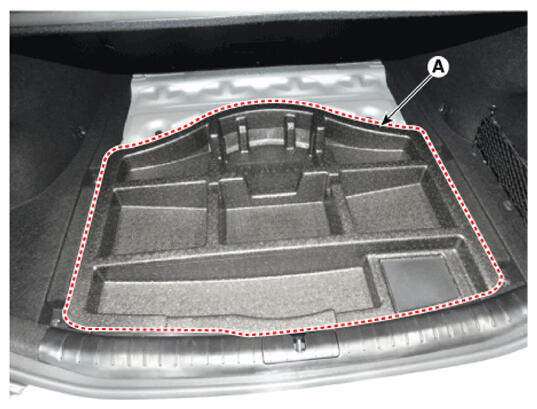

- Remove the luggage center tray (A).

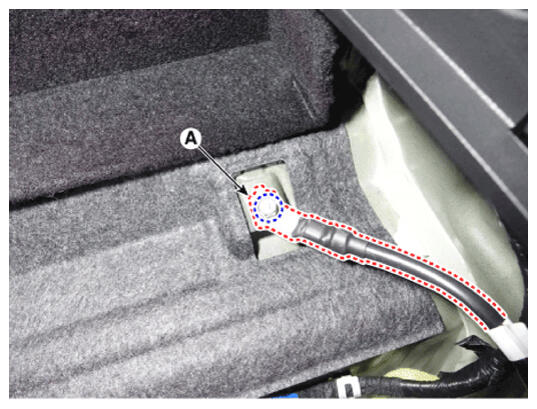

- Disconnect the battery negative (-) terminal (A).
Tightening torque: 5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

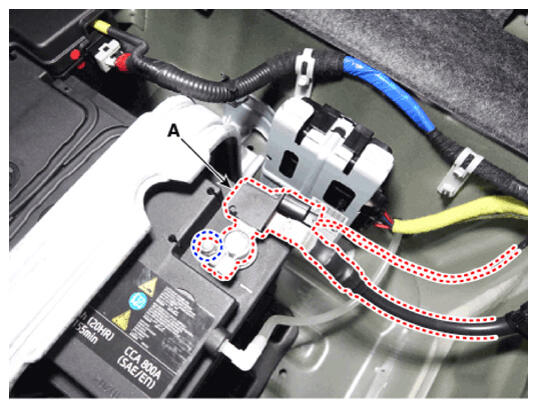

- Disconnect the battery sensor connector (A).

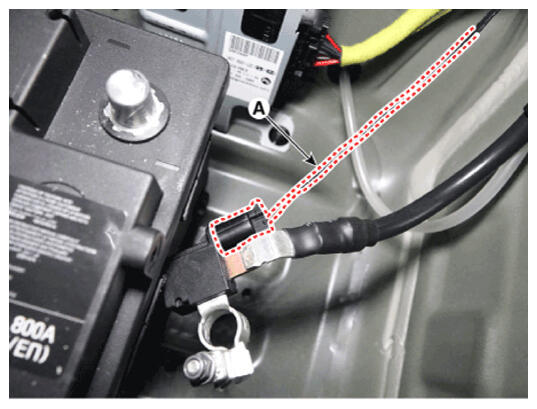

- Remove the battery sensor cable after loosening the mounting bolt (A).
Tightening torque: 5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)
