Repair Procedures: Removal: Notes
- Turn the ignition switch OFF.
- Open the tail gate.

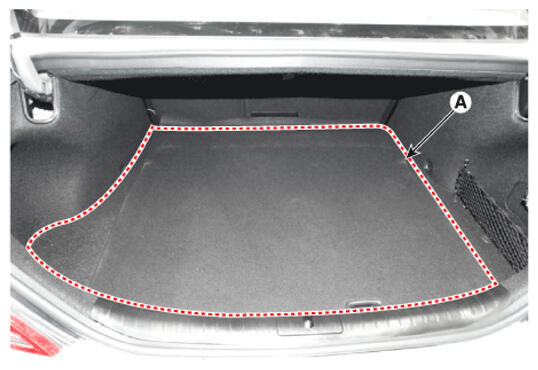

- Remove the luggage covering mat (A).

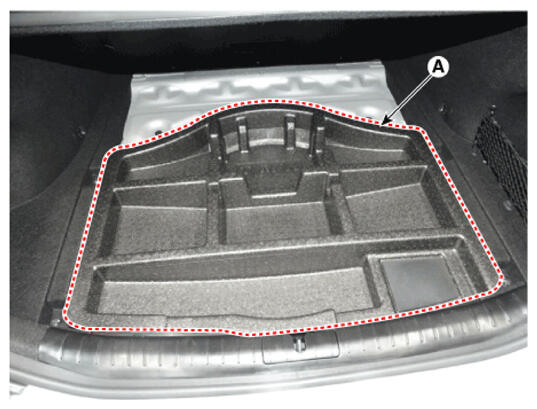

- Remove the luggage center tray (A).

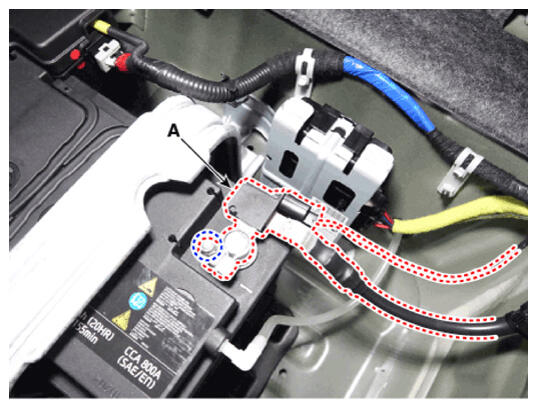

- Disconnect the battery negative (-) terminal (A).
Tightening torque: 5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

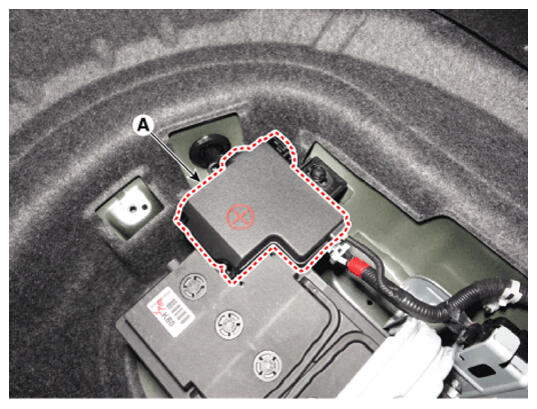

- Remove the battery (+) cover (A).

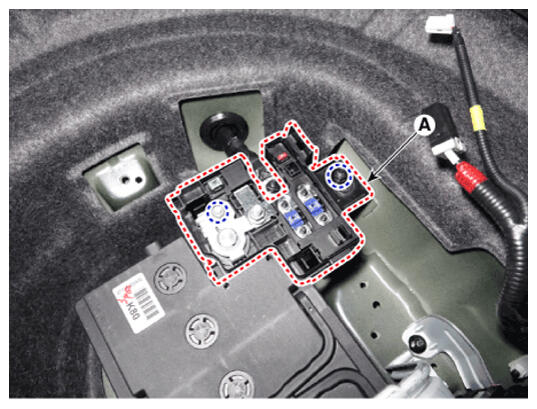

- Disconnect the battery positive (+) terminal (A).
Tightening torque: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

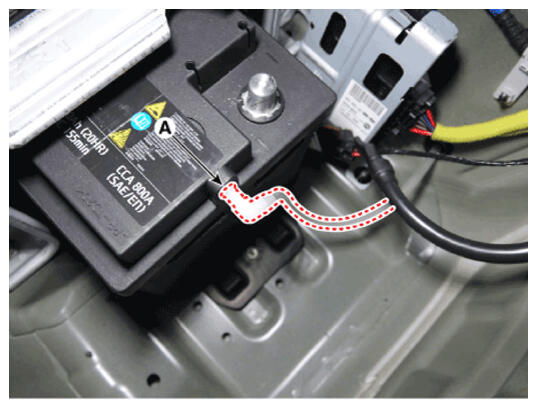

- Remove the vent hose (A).

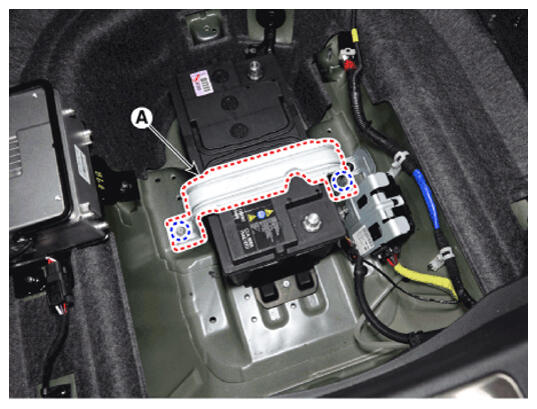

- Remove the battery mounting band (A).
Tightening torque: 19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

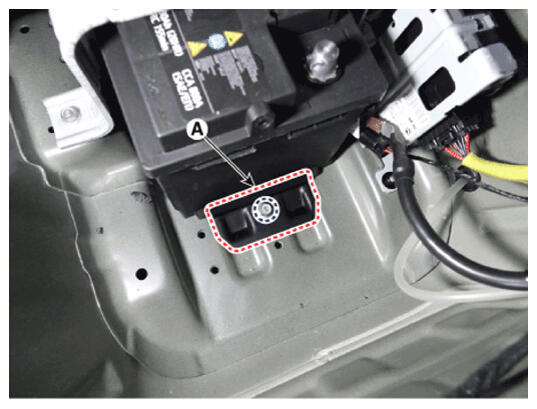

- Remove the battery mounting bracket (A).
Tightening torque: 19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
