Components And Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

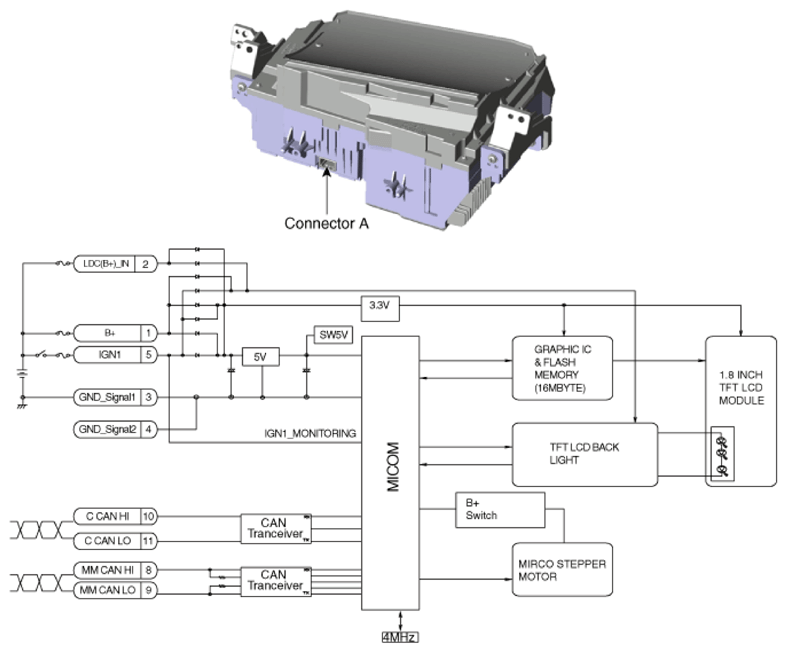

Connector A	Pin	Description	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Battery (+)	7	-
	2	LDC (Battery+) input	8	M-CAN High
	3	Ground 1	9	M-CAN Low
	4	Ground 2	10	C-CAN High
	5	Ignition	11	C-CAN Low
	6	-	12	-
