Repair Procedures: Replacement

CAUTION:
  • Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
  • Exercise caution in order to minimize the length and frequency of contact of your skin to used oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline, thinners, or solvents.
  • In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites.
  1. Remove the engine room under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

  2. Drain the engine oil.

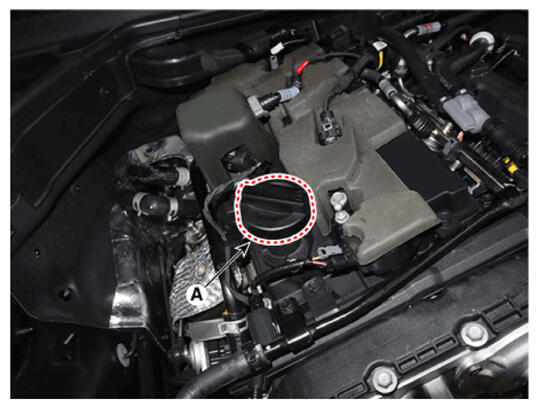

    1. Remove the oil filler cap (A).
      G16829663Courtesy of HYUNDAI MOTOR AMERICA

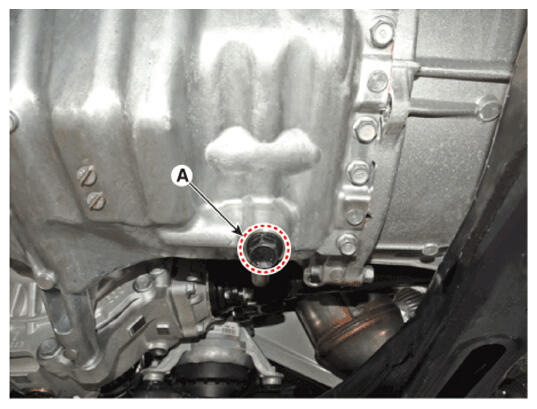

    2. Remove the drain plug (A) and then drain oil.
      G16829664Courtesy of HYUNDAI MOTOR AMERICA
  3. Replace the oil filter.
    1. Remove the fixing pin (A) at the bottom of the oil filter cap and loosen the drain bolt (B) to drain the oil inside the filter.
      G16829665Courtesy of HYUNDAI MOTOR AMERICA

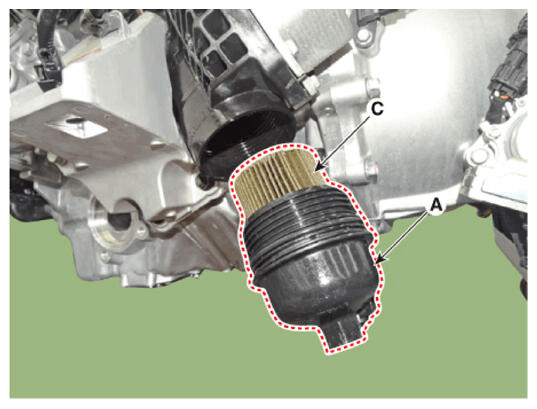

    2. Remove the oil filter cap (A).
    3. Install the new oil filter element (C) and then install the oil filter cap (A).

      Lightly screw the oil filter cap into place, and tighten it until the O-ring (B) contacts the seat. Finally tighten it again by specified tightening torque.

      Tightening torque:  25.5 - 30.0 N.m (2.6 - 3.1 kgf.m, 18.8 - 22.4 lb-ft)

      G16829666Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Inspect the threads and O-ring of the filter cap.
      • Replace the O-ring of the oil filter cap with a new one.
      • Wipe off the seat on the oil filter cap, then apply a light coat of oil to the oil filter cap O-ring.
      • Before installing new engine oil filter element, be sure to clean residual oil inside of the oil filter housing and oil filter cap and on the threads of the oil filter cap. If not, residual oil will come out of the oil filter housing and cap and it may be mistaken as an oil leak.
      • If the above instruction is not complied with, the oil remaining on the oil filter cap thread and the inside of housing may seep out from the oil filter cap and the housing mounting surface.

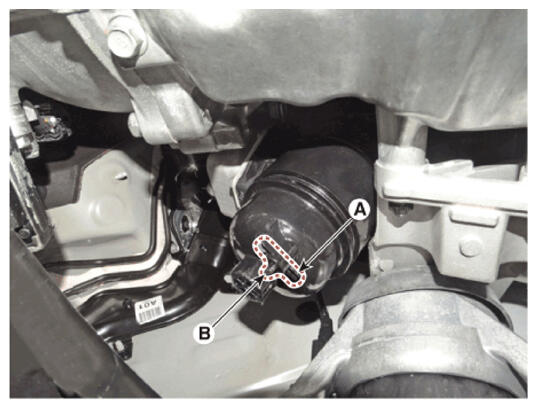

    4. Replace the drain bolt (B) with a new one and then tighten it to the specified torque and then install the fixing pin (A).

      Tightening torque:  4.0 - 5.0 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb-ft)

      G16829667Courtesy of HYUNDAI MOTOR AMERICA
  4. Fill engine oil.
    1. Install the oil drain plug (A) together with the new gasket.

      Tightening torque:  34.3 - 44.1 N.m (3.5 - 4.5 kgf.m, 25.3 - 32.5 lb-ft)

      G16829668Courtesy of HYUNDAI MOTOR AMERICA
    2. Fill new engine oil through the oil inlet.

      Before filling engine oil, remove the oil level gauge.

      Total: 7.4 L (1.95 US gal, 7.81 US qt, 6.51 Imp qt)

      Oil pan: 5.8L (1.53 U.S.gal., 6.13 U.S.qt., 5.10 lmp.qt.)

      Oil change (Including oil filter): 6.2L (1.64 U.S.gal., 6.55 U.S.qt., 5.45 lmp.qt.)

      Information

      • First fill the half of total capacity and then fill the other half after approximate 1 minute has elapsed.

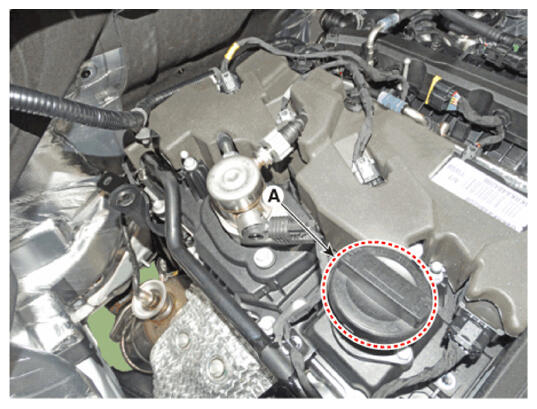

    3. Install the oil filler cap (A).
      G16829669Courtesy of HYUNDAI MOTOR AMERICA
  5. Install the engine room under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

  6. Start the engine and check that no oil is leaking from the drain plug or oil filter.
  7. Recheck the engine oil level.
