ETC (Electronic Throttle Control) System
›
Specifications
›
Specification
›

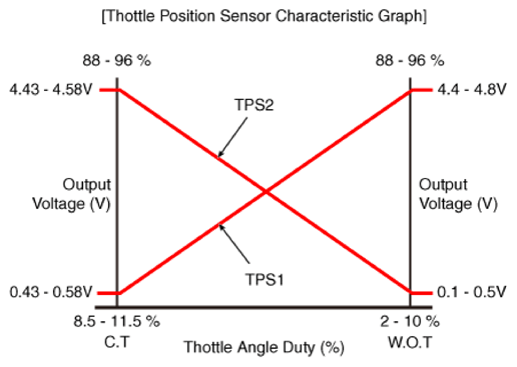

[TPS2]
ETC (Electronic Throttle Control) System: Specifications: Specification: [TPS2]
Item
Duty (%)
Output Voltage (V) [Supply Voltage = 5V]
C.T
88.5 - 91.5 %
4.43 - 4.58.
W.O.T
2 - 10%
0.1 - 0.5
Courtesy of HYUNDAI MOTOR AMERICA
