Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Air Cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

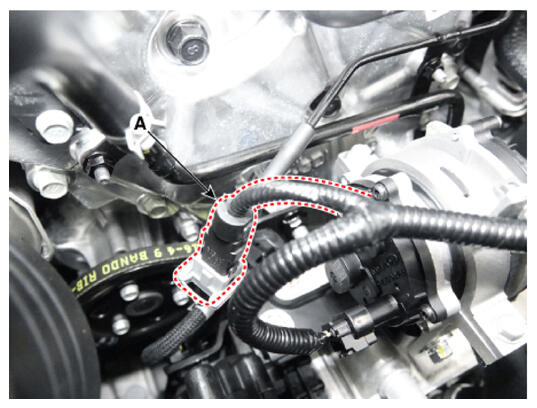

- Disconnect the RCV control solenoid valve connector (A).

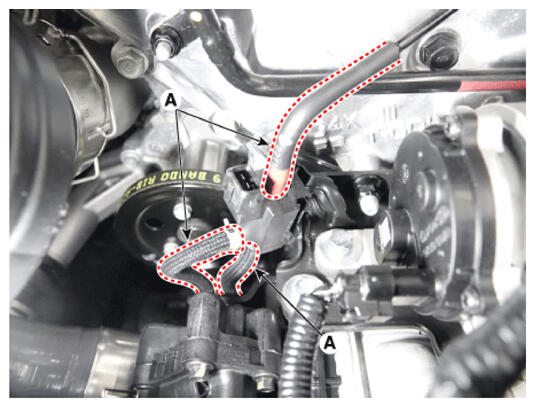

- After disconnecting the RCV hoses (A), remove the bolt.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
