Repair Procedures: Installation

Install in the reverse order of removal.

NOTE:

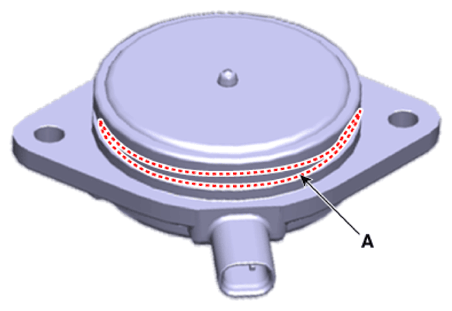

Replace the O-ring (A) with a new one.

G16830039

Courtesy of HYUNDAI MOTOR AMERICA

When installing, apply engine oil to the injector O-ring.
