Charging System: Alternator

13.5 V 150 A

Item	Specification
Form	AC power generation
Rated Voltage	13.5 V 150 A
Motor RPM	1000 - 18000 RPM
Regulator voltage	14.2 - 14.8
Connector pin count	1 (LIN)
Pulley Type	OAP

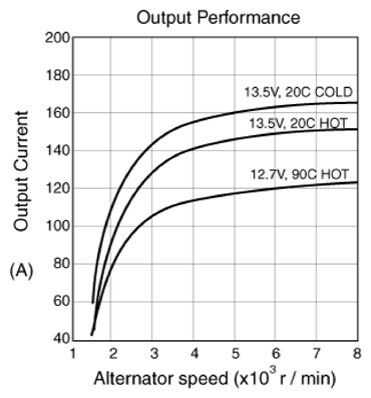

G16829746

Courtesy of HYUNDAI MOTOR AMERICA
