Components Location

WARNING: This page is about a different variant/trim than selected.

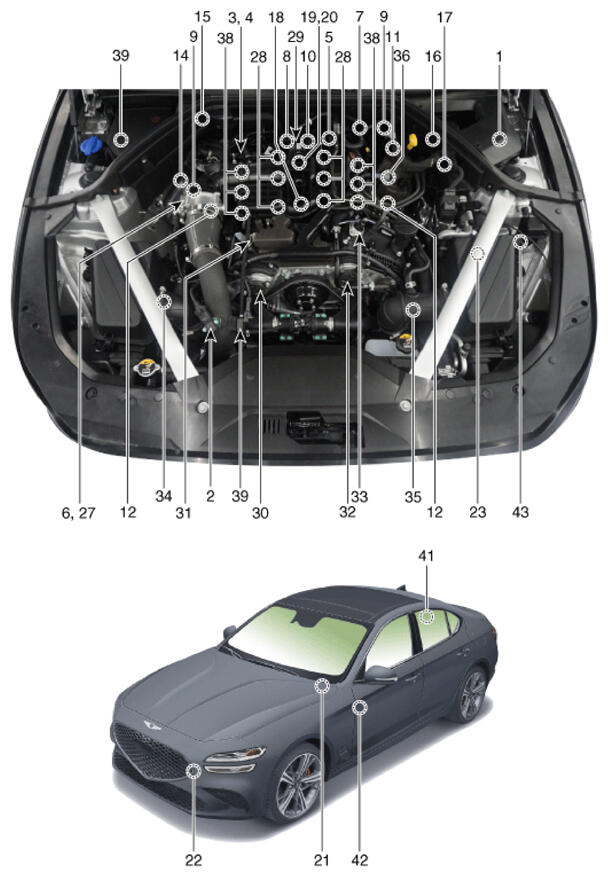

G16833970Courtesy of HYUNDAI MOTOR AMERICA

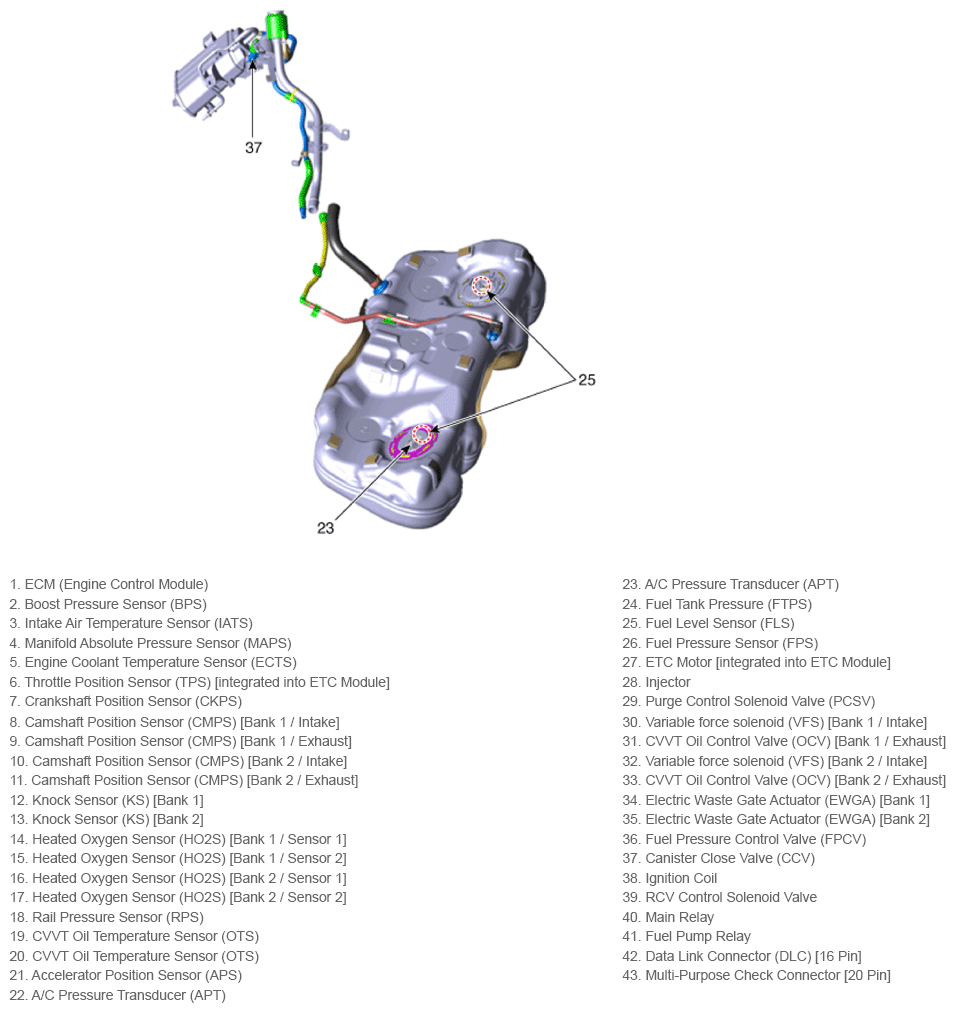

G16833971Courtesy of HYUNDAI MOTOR AMERICA

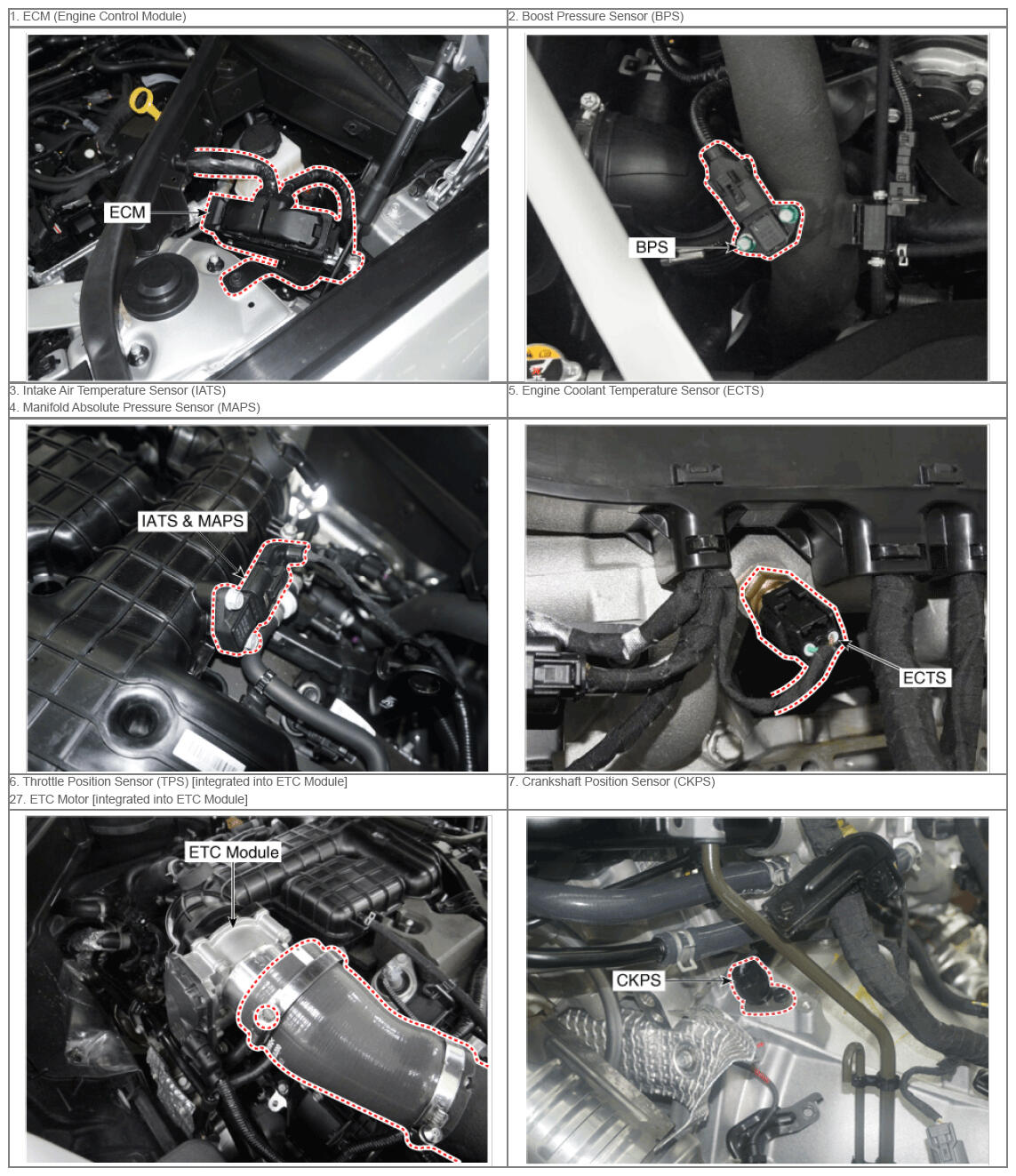

G16833972Courtesy of HYUNDAI MOTOR AMERICA

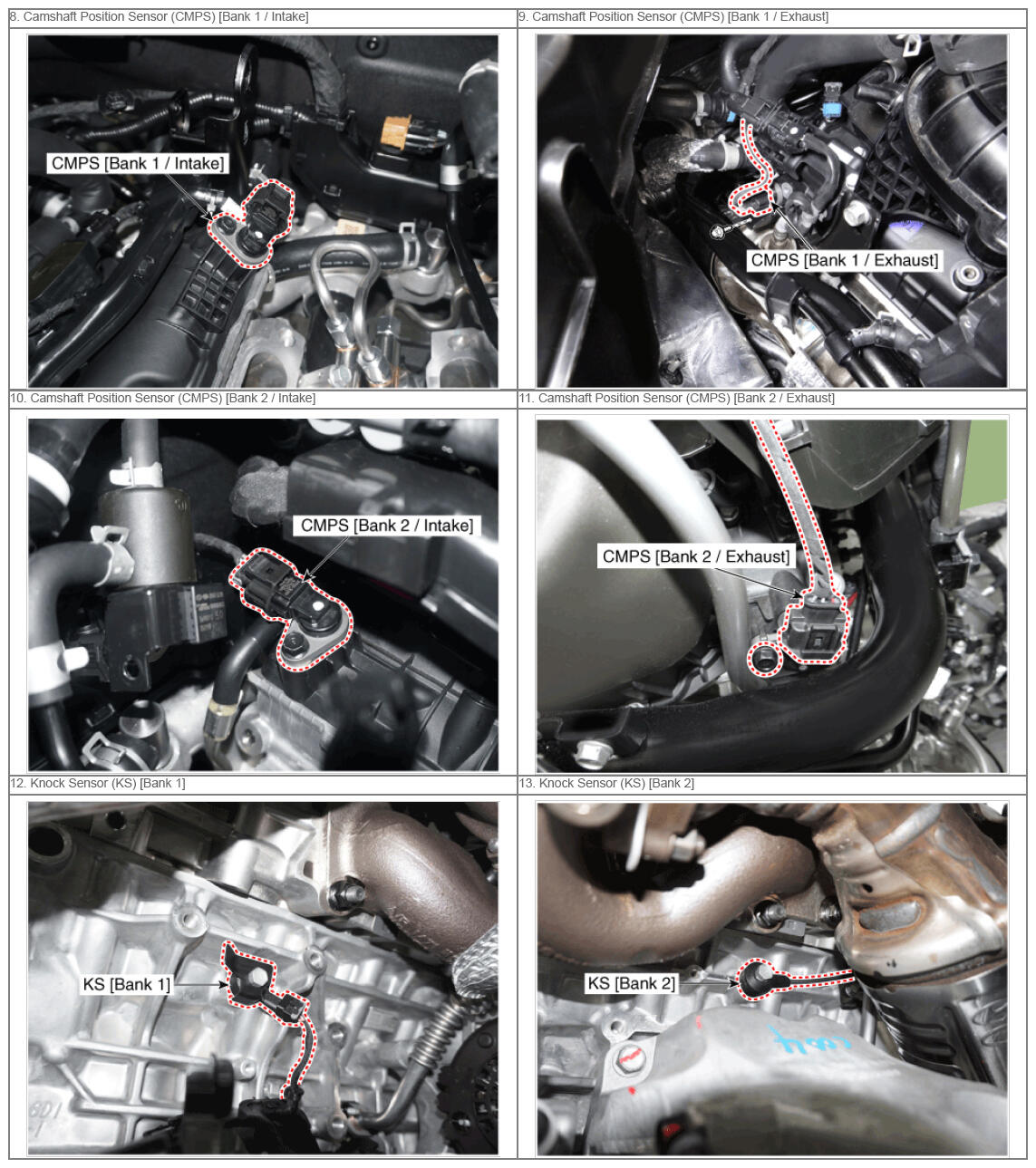

G16833973Courtesy of HYUNDAI MOTOR AMERICA

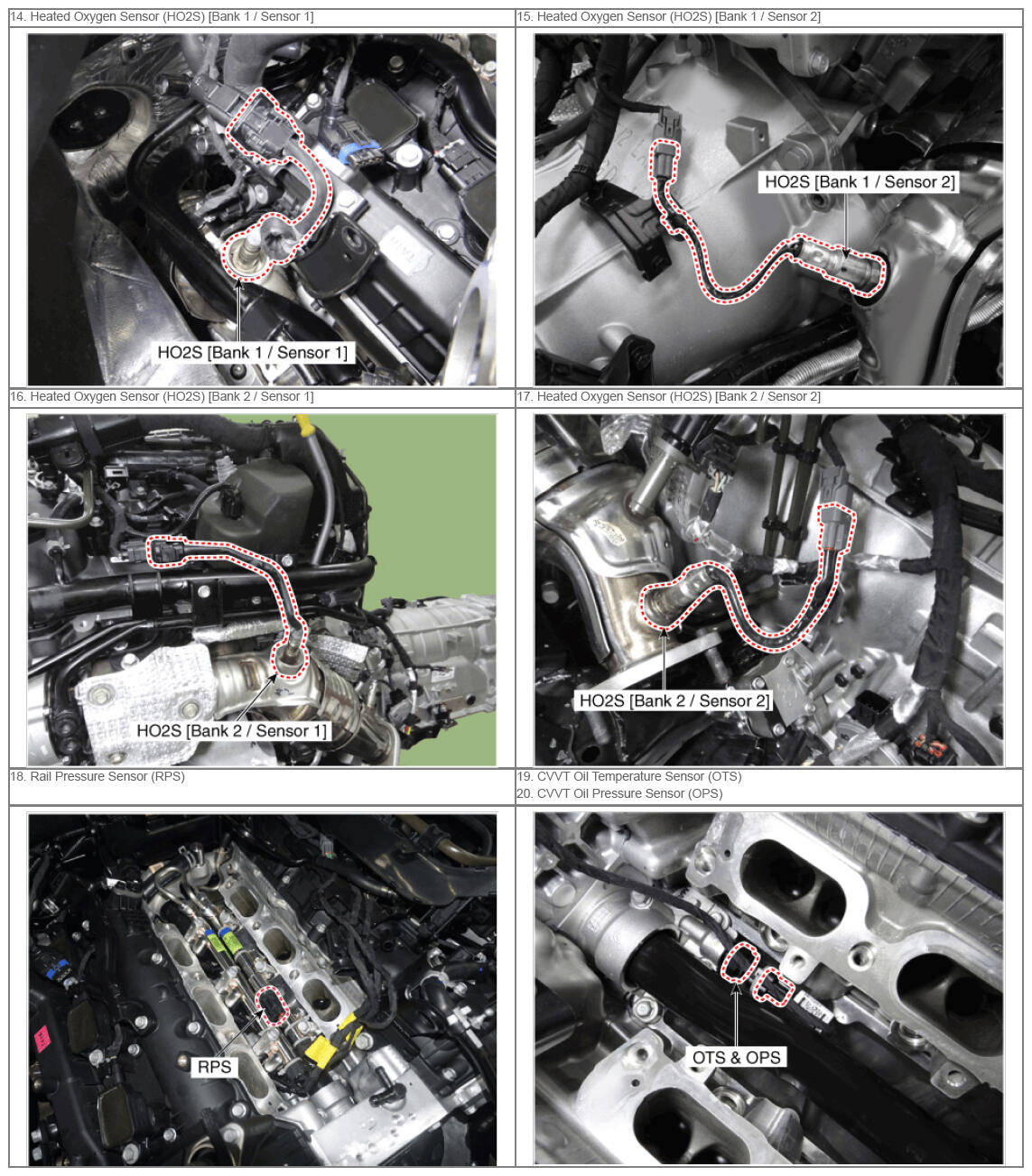

G16833974Courtesy of HYUNDAI MOTOR AMERICA

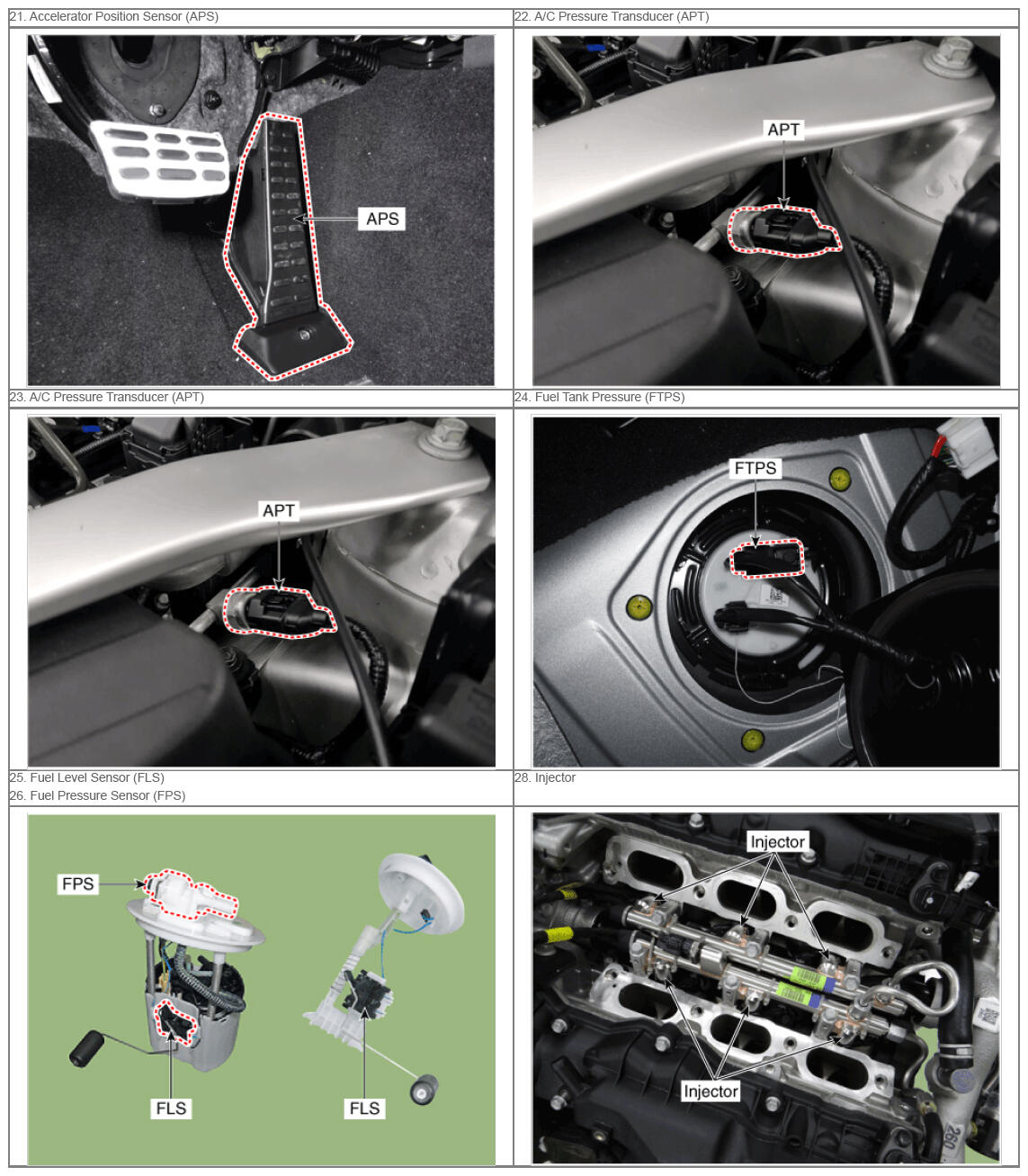

G16833975Courtesy of HYUNDAI MOTOR AMERICA

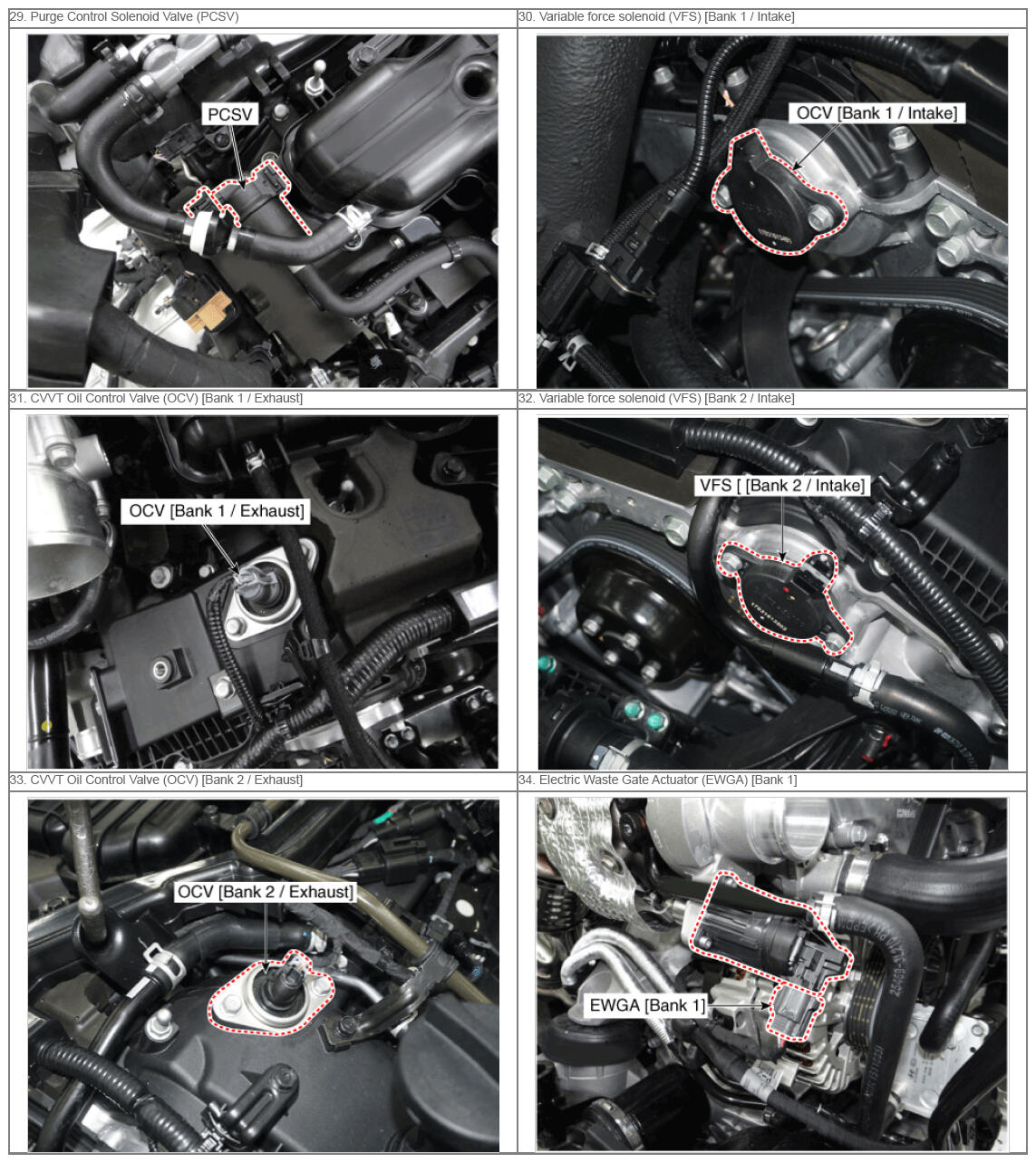

G16833976Courtesy of HYUNDAI MOTOR AMERICA

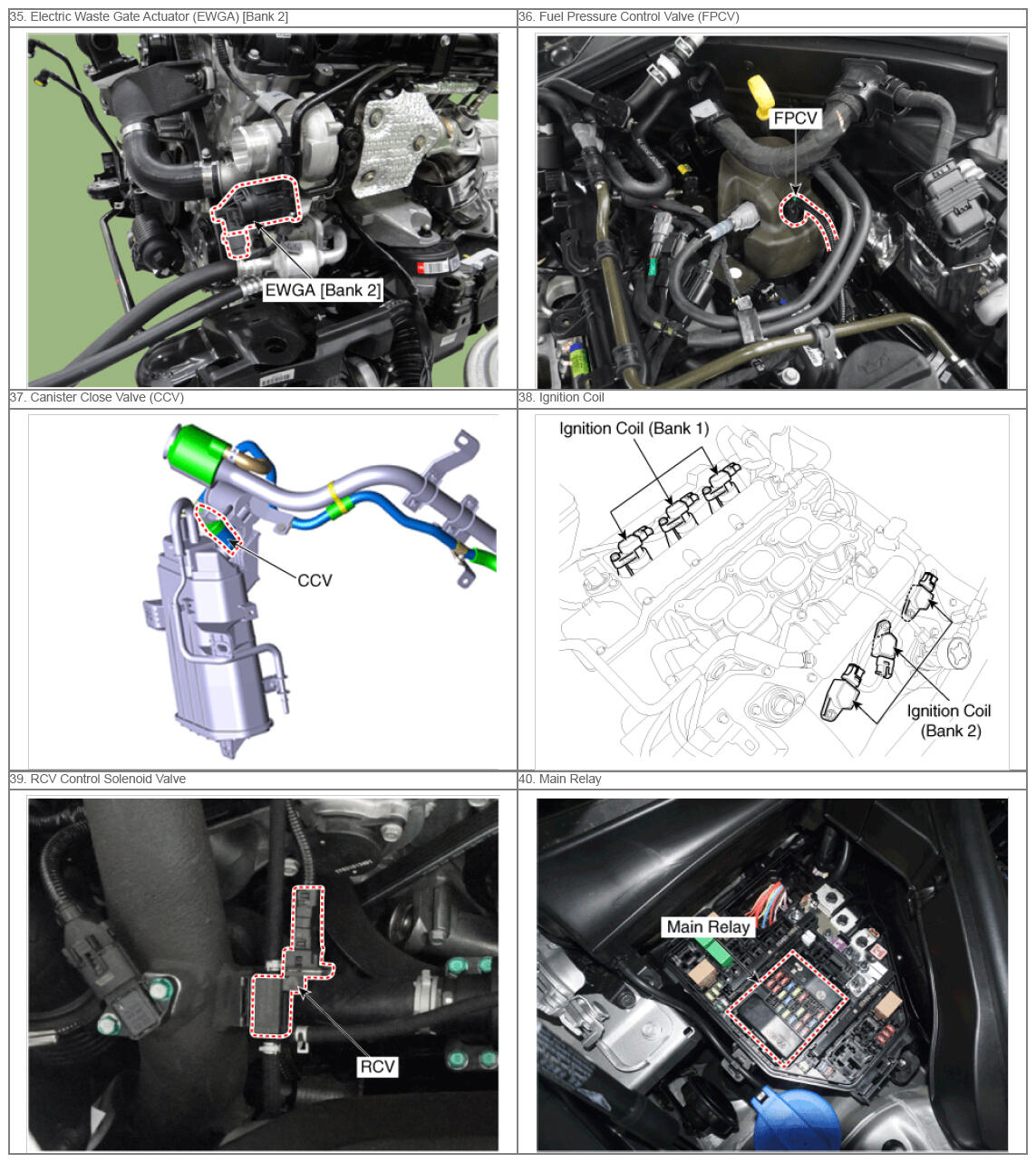

G16833977Courtesy of HYUNDAI MOTOR AMERICA

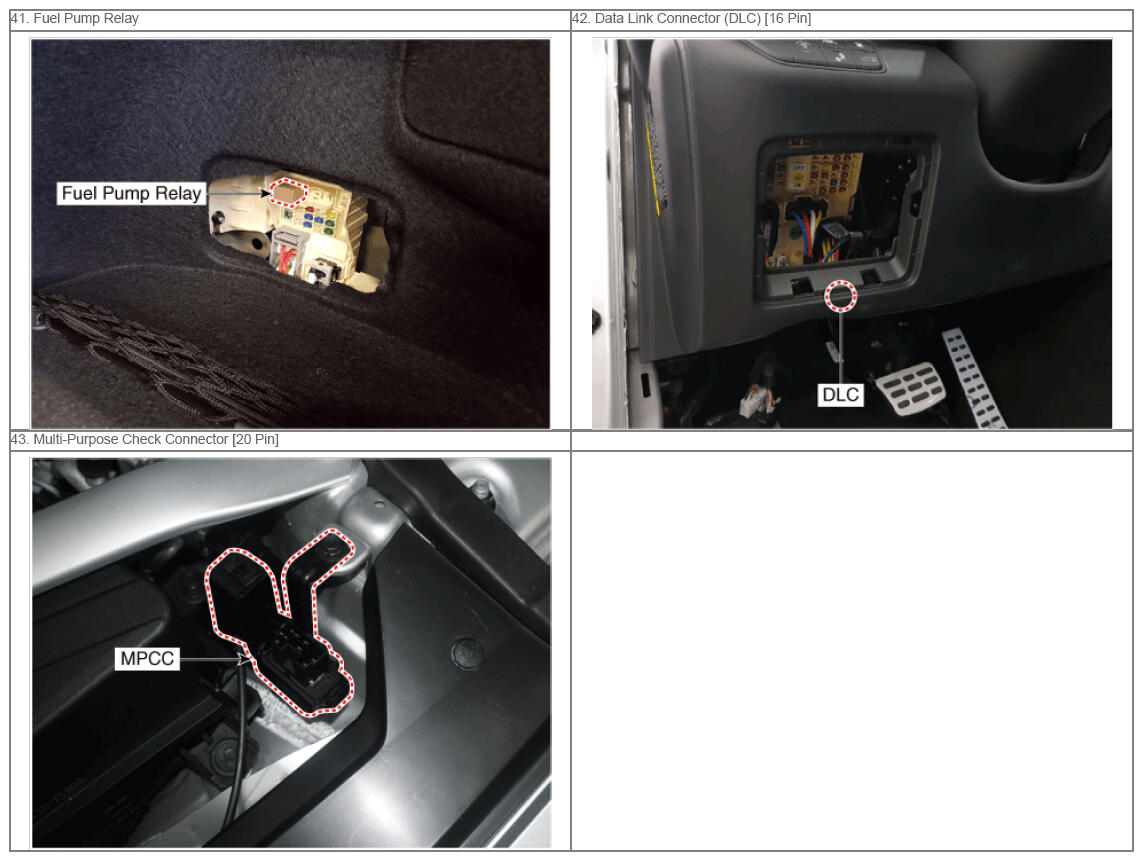

G16833978Courtesy of HYUNDAI MOTOR AMERICA
