Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

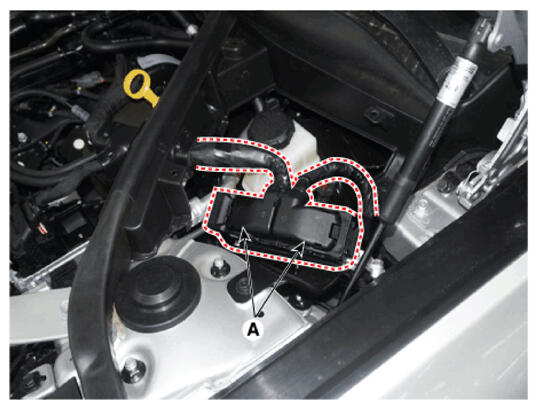

Disconnect the ECM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

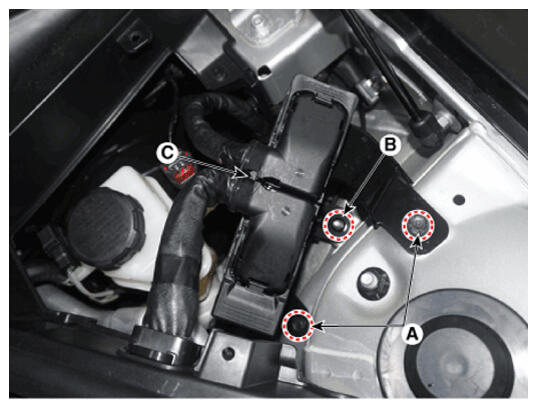

Remove the ECM bracket assembly (C) after loosening the mounting bolt (A) and nuts (B).

Courtesy of HYUNDAI MOTOR AMERICA

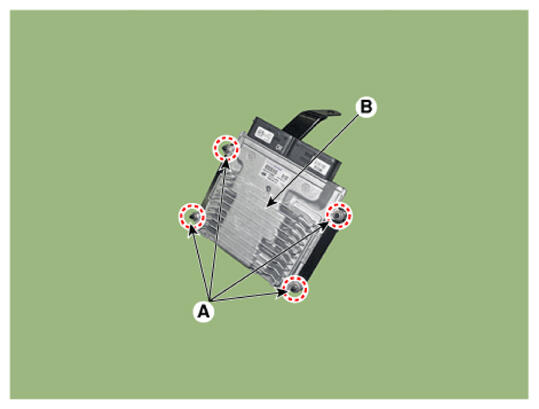

Remove the ECM (B) after loosening the mounting nuts (A).

Courtesy of HYUNDAI MOTOR AMERICA
