Tailgate open switch

  1. Disconnect the negative (-) battery terminal.

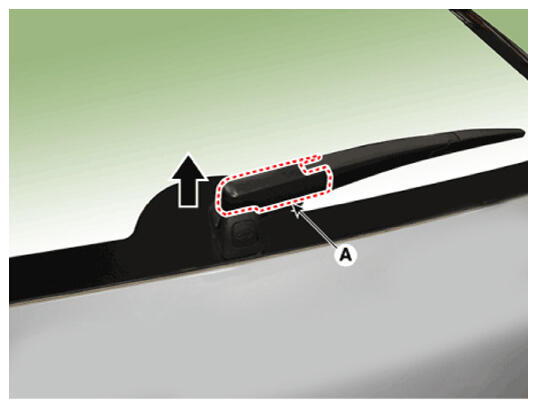

  2. Open the rear wiper cover (A).
    G16832248Courtesy of HYUNDAI MOTOR AMERICA

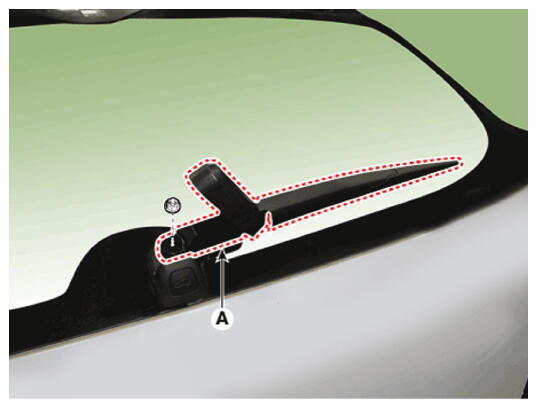

  3. Loosen the mounting nut and remove the rear wiper (A).
    G16832249Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the rear wiper motor.

    (Refer to the appropriate service information.

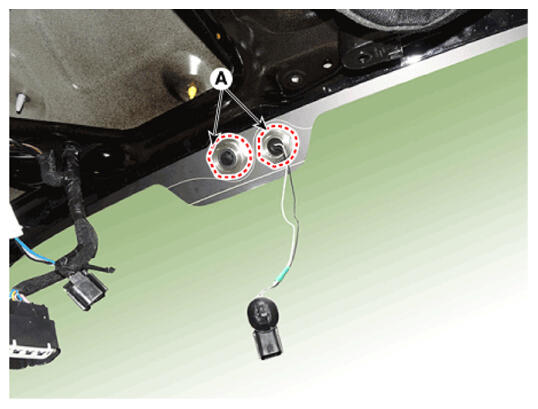

  5. Remove the mounting nuts (A) and remove the tailgate open switch.
    G16832250Courtesy of HYUNDAI MOTOR AMERICA
