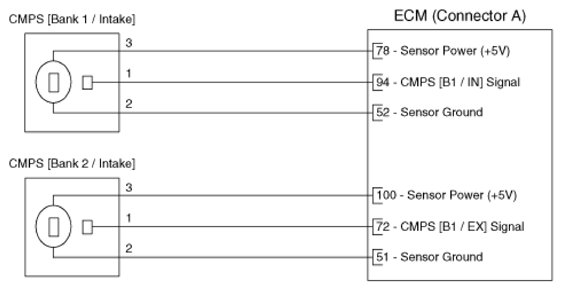

Home › Genesis › 2024 › G70 2.5T, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
