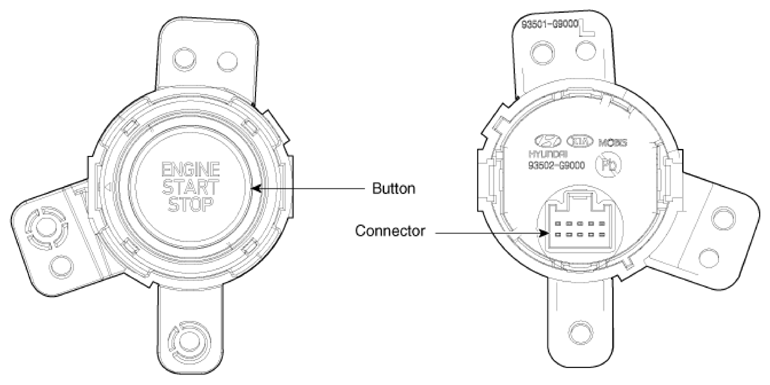

Components And Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

PIN	Description
1	SSB switch 1 _output
2	-
3	SSB Illumination (+)
4	Immobilizer power
5	-
6	Ground
7	SSB switch 2_output
8	Rheostat input
9	SSB ring illumination
10	Immobilizer ground
