Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

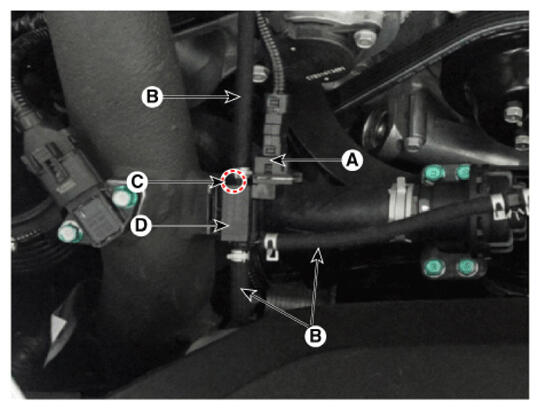

  2. Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
  3. Remove the RCV control solenoid valve (D) after loosening the mounting bolt (C).
    G16834113Courtesy of HYUNDAI MOTOR AMERICA
