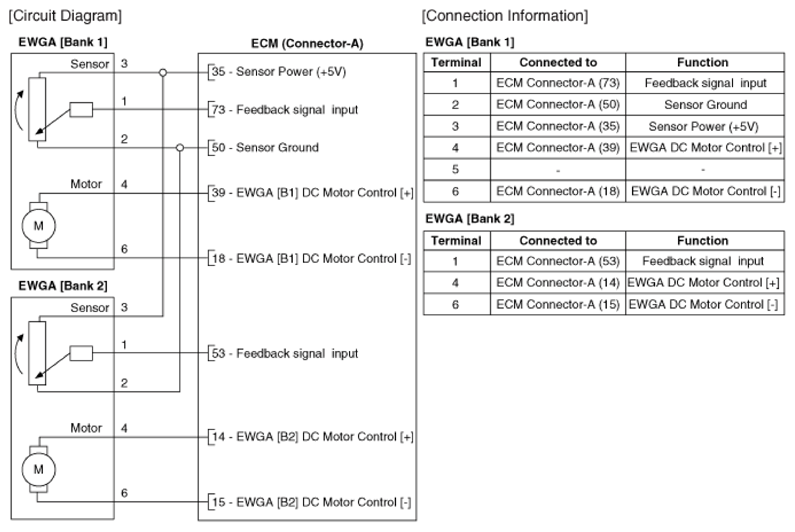

Home › Genesis › 2024 › G70 3.3T Sport Advanced, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Electric Waste Gate Actuator (EWGA) › Schematic Diagrams › Circuit Diagram › Notes
