Repair Procedures: Removal

  1. Turn the ignition switch OFF.

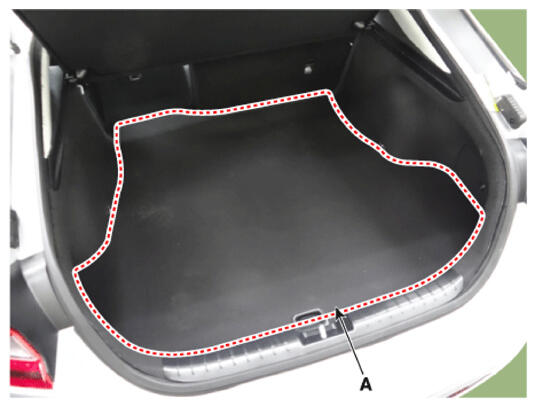

  2. Remove the luggage covering (A).
    G16834126Courtesy of HYUNDAI MOTOR AMERICA

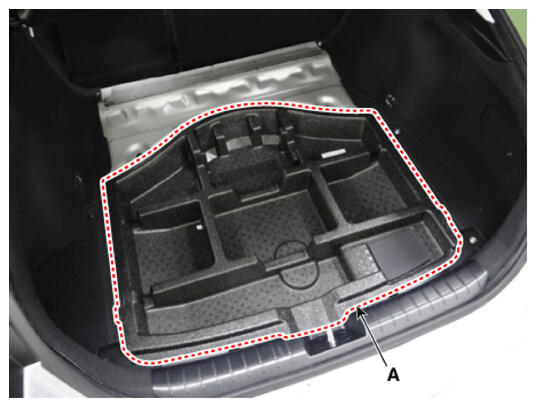

  3. Remove the luggage center tray (A).
    G16834127Courtesy of HYUNDAI MOTOR AMERICA

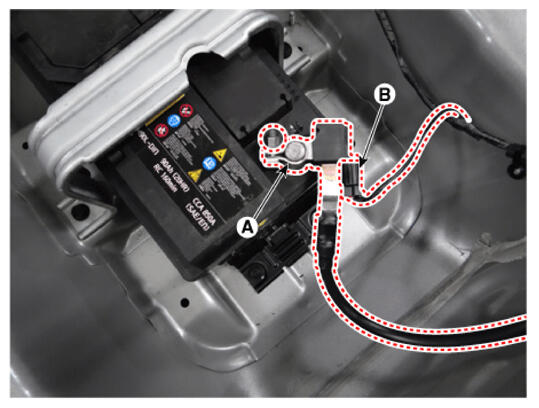

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G16834128Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G16834129Courtesy of HYUNDAI MOTOR AMERICA
