Repair Procedures: Removal

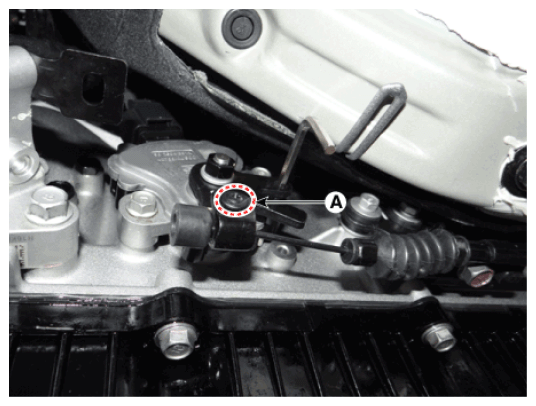

  1. Remove the fastener (A) and then removing the parking cable from the parking release lever.
    G16834568Courtesy of HYUNDAI MOTOR AMERICA

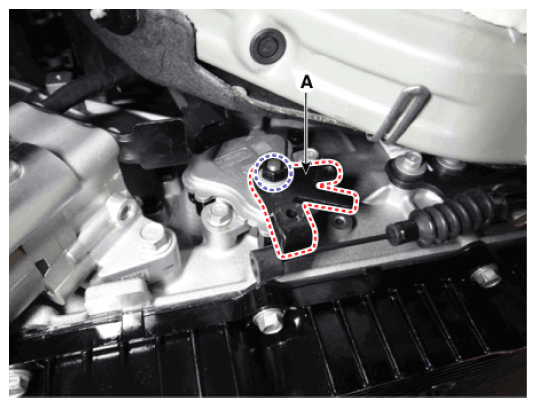

  2. Remove the parking release lever (A) after loosening the nut.
    G16834569Courtesy of HYUNDAI MOTOR AMERICA

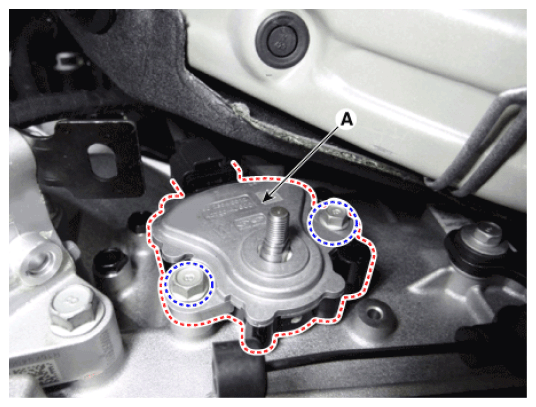

  3. Remove the parking switch (A) after loosening the bolts.
    G16834570Courtesy of HYUNDAI MOTOR AMERICA

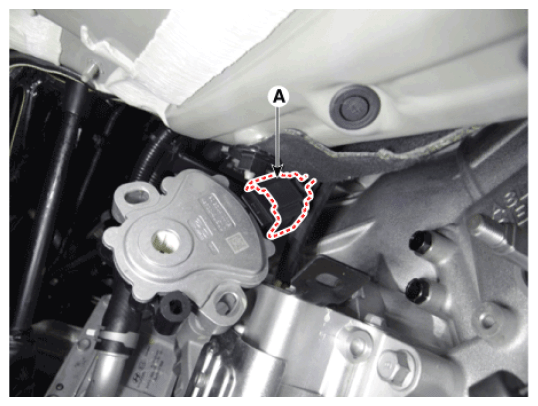

  4. Disconnect the parking switch connector (A).
    G16834571Courtesy of HYUNDAI MOTOR AMERICA
