Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the driver side front door trim. (Refer to Body - "FRONT DOOR TRIM ")
Disconnect the IMS Switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

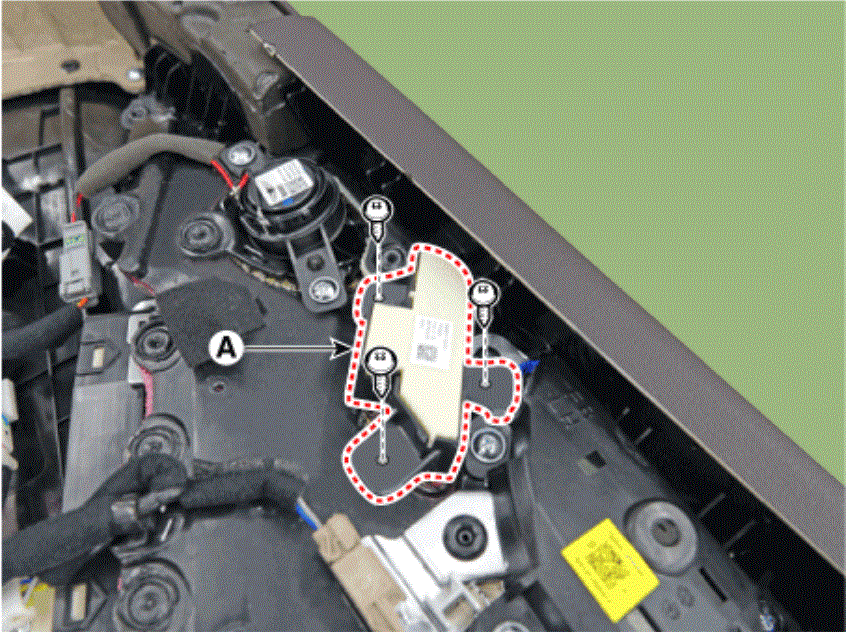

Loosen the mounting screws and remove the IMS Switch (A).

Courtesy of HYUNDAI MOTOR AMERICA
