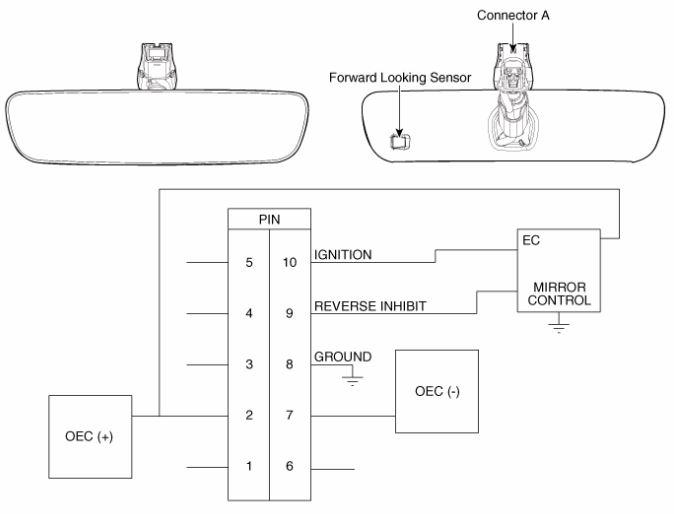

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	-
	2
	3	-
	4	-
	5	OEC (+)
	6	IGN 1
	7	Reverse inhibit
	8	Ground
	9	G OEC (-)
	10	-
