Repair Procedures: Removal
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Take care not to scratch the body surface.

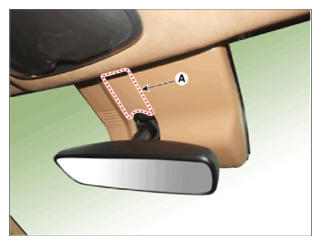

- Using a screwdriver or remover, remove the multi sensor cover (A).

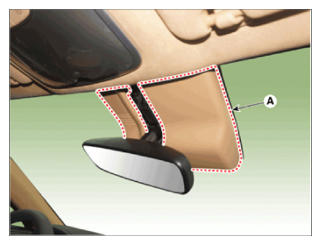

- Using a screwdriver or remover, remove the multi sensor cover (A).

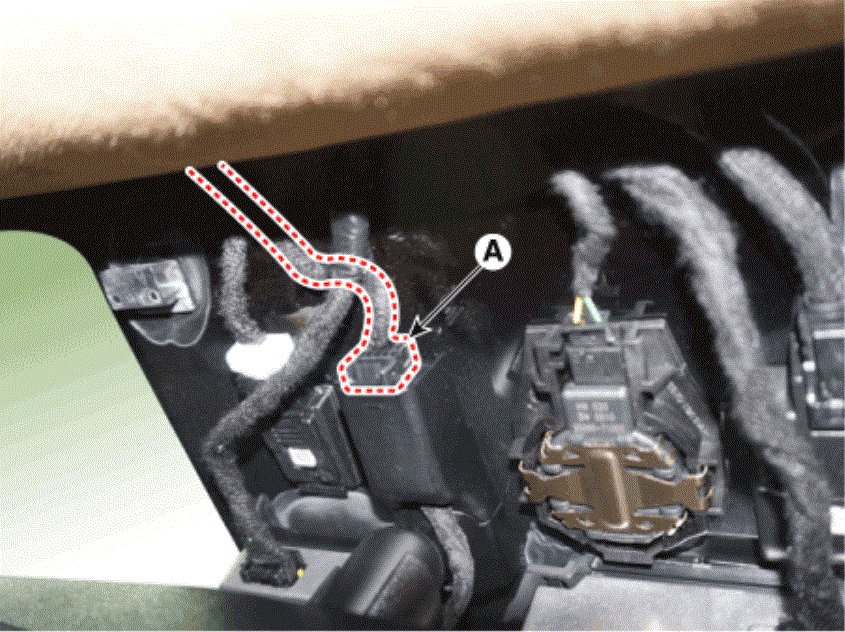

- Disconnect the inside rear view mirror connector (A) by pressing the clip.

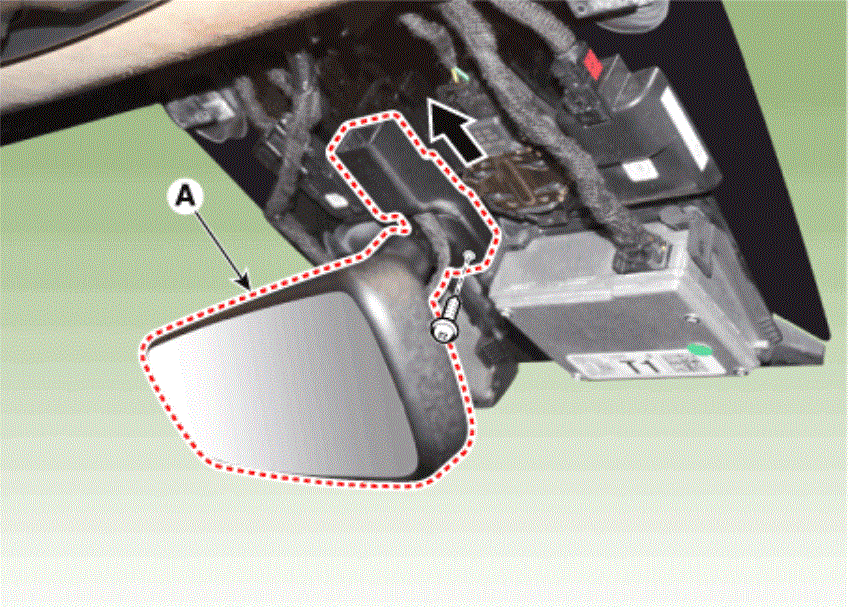

- Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).
Tightening torque:
1.5 - 2.0 N.m (0.15 - 0.2 kgf.m, 1.1 - 1.4 lb-ft)
