Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

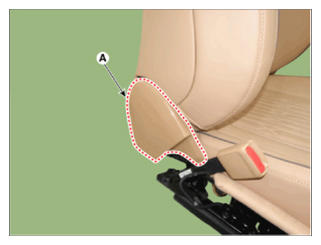

- Using a screwdriver or remover, remove the front seat shield inner cover (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
