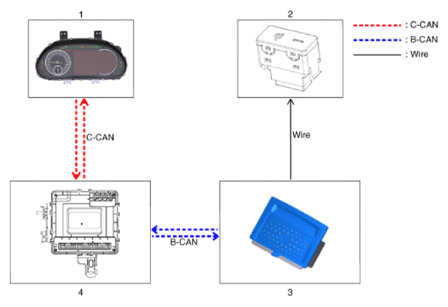

System Configuration Diagram

G15550094Courtesy of HYUNDAI MOTOR AMERICA
  1. Instrument cluster: Alerts about contact with mobile phone.
  2. Wireless charging lamp: Displays the charging status.
  3. Integrated body control unit (IBU):
    1. Determines contact with mobile phone.
    2. Stops charging during the activation of LF.
