Repair Procedures: Replacement
NOTE:
- When installing the belt, make sure not to damage the retractor.
- Remove the rear package tray trim.
(Refer to Interior Trim - "REAR PACKAGE TRAY TRIM ")

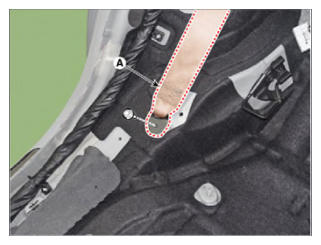

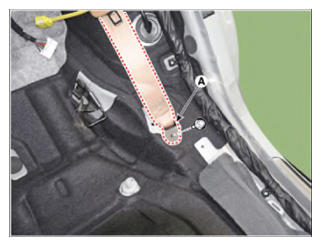

- After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
Tightening torque: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)
[LH]
[RH]

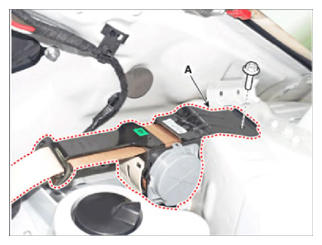

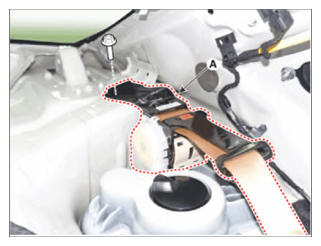

- Loosen the mounting bolt, remove the rear seat belt retractor (A).
Tightening torque: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)
[LH]
[RH]
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
