Repair Procedures: Removal: 2WD

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Loosen the wheel nuts slightly.

    Raise the vehicle, and make sure it is securely supported.

  3. Remove the front wheel and tire (A) from front hub.

    Tightening torque:

    137.3 - 156.9 N.m (14.0 - 16.0 kgf.m, 101.3 - 115.7 lb-ft)

    NOTE:

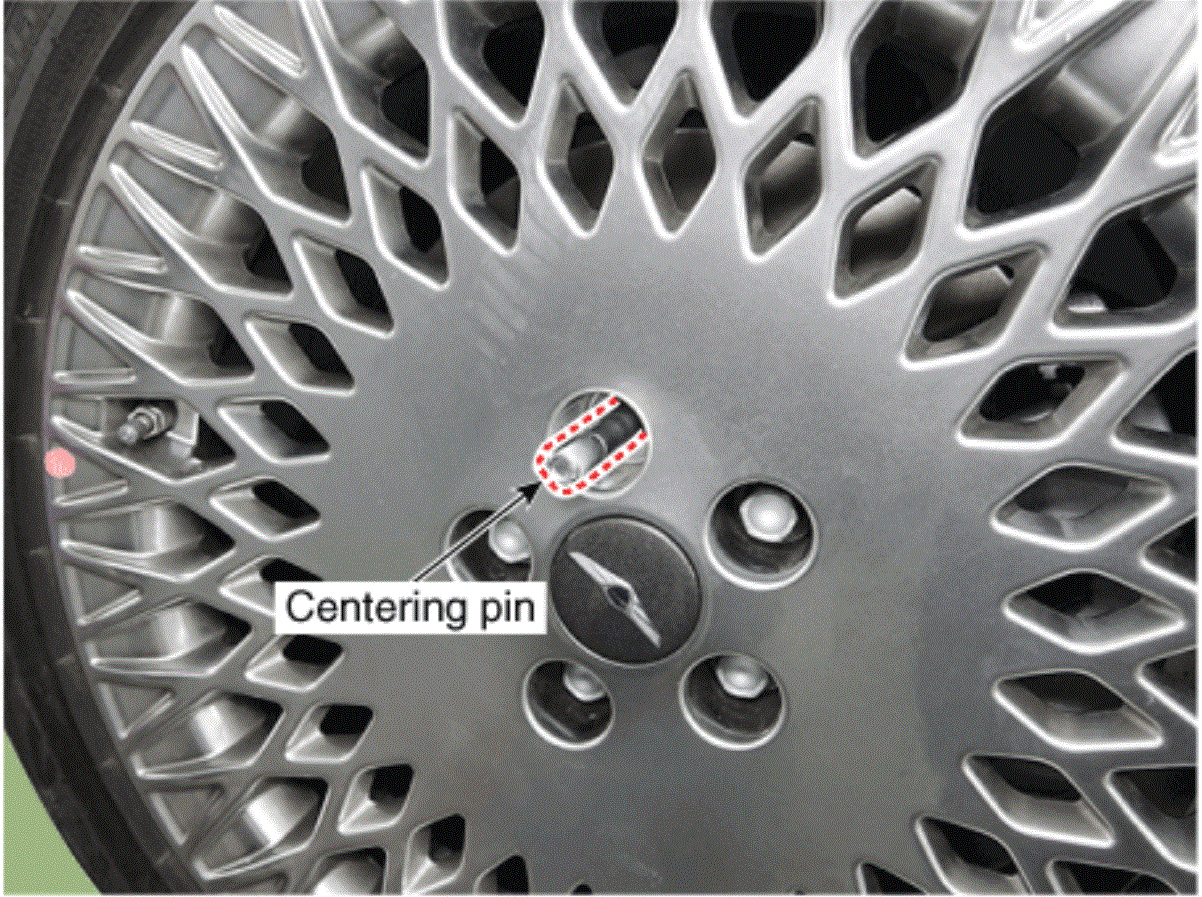

    • Safely remove the wheel and tire (A) using the guide bolt included in the Tire Mobility Kit (TMK).
      G15548516Courtesy of HYUNDAI MOTOR AMERICA

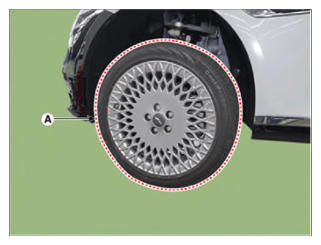

    • Be careful not to damage the hub bolts when removing the front wheel and tire (A).
    G15548517Courtesy of HYUNDAI MOTOR AMERICA

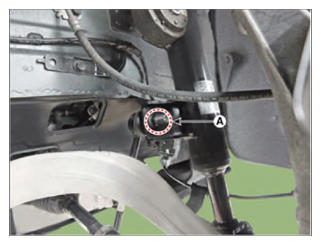

  4. Disconnect the stabilizer link with the front strut assembly after loosening the nut (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    NOTE:
    • When loosening the nut (A), fix the outer hexagon of stabilizer bar link.
    • Be careful not to damage the stabilizer link boots.
    G15548518Courtesy of HYUNDAI MOTOR AMERICA

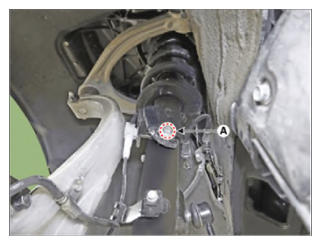

  5. Loosen the mounting bolt (A) and then remove the front wheel speed sensor cable bracket.

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G15548519Courtesy of HYUNDAI MOTOR AMERICA

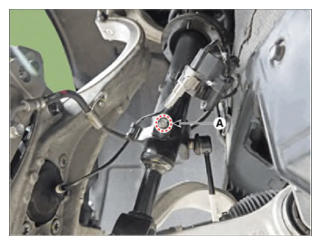

  6. Loosen the G-sensor bracket mounting bolts (A).

    Tightening Torques:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G15548520Courtesy of HYUNDAI MOTOR AMERICA

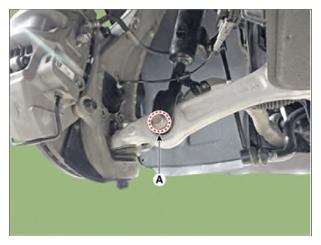

  7. Loosen the bolt and nut (A) and then disconnect the lateral arm from the fork bracket.

    Tightening torque:

    156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

    G15548521Courtesy of HYUNDAI MOTOR AMERICA

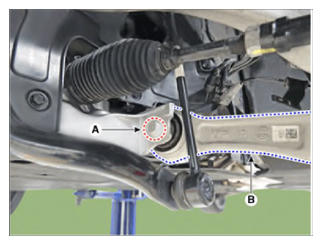

  8. Loosen the bolt and nut (A) and then disconnect the lateral arm from the front cross member.

    Tightening torque:

    156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

    G15548522Courtesy of HYUNDAI MOTOR AMERICA

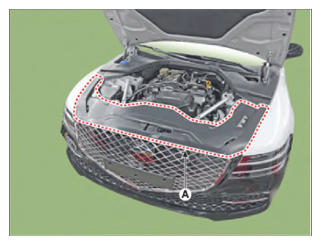

  9. Remove the engine room cover (A).
    G15548523Courtesy of HYUNDAI MOTOR AMERICA

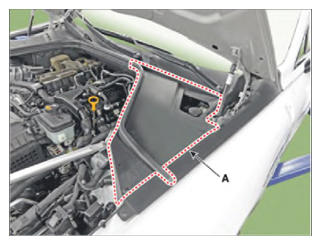

  10. Remove the engine side cover (A).
    G15548524Courtesy of HYUNDAI MOTOR AMERICA

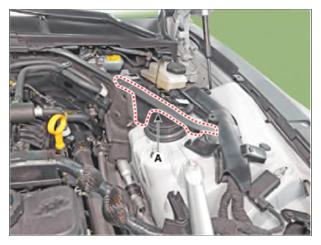

  11. Remove the LH side cover (A).
    G15548525Courtesy of HYUNDAI MOTOR AMERICA
  12. Remove the continuously variable damping control connector and cap. [ECS type]

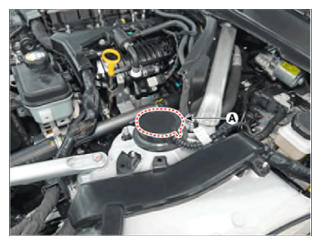

    1. Remove the service cover (A).
      G15548526Courtesy of HYUNDAI MOTOR AMERICA

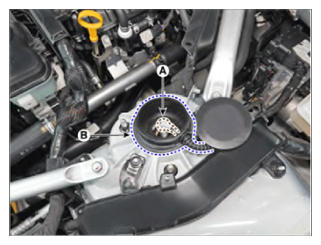

    2. Disconnect the continuously variable damping control connector (A) and then remove the cap (B).
      G15548527Courtesy of HYUNDAI MOTOR AMERICA

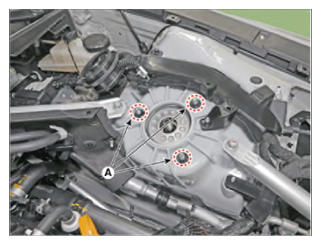

  13. Loosen front strut upper mounting nut (A) and then remove the front strut assembly.

    Tightening torque:

    53.9 - 73.5 N.m (5.5 - 7.5 kgf.m, 39.8 - 54.2 lb-ft)

    NOTE:
    • When tightening the front strut upper mounting nuts, tighten them in empty vehicle state.
    • Do not reuse the mounting nut.
    G15548528Courtesy of HYUNDAI MOTOR AMERICA
