Home › Genesis › 2024 › G80 2.5T Advanced › Repair and Diagnosis › Transmission › Automatic Trans › Engine And Transmission Assembly - 2.5L › Engine Mounting › Components And Components Location › Components › 2WD

Components And Components Location: Components: 2WD

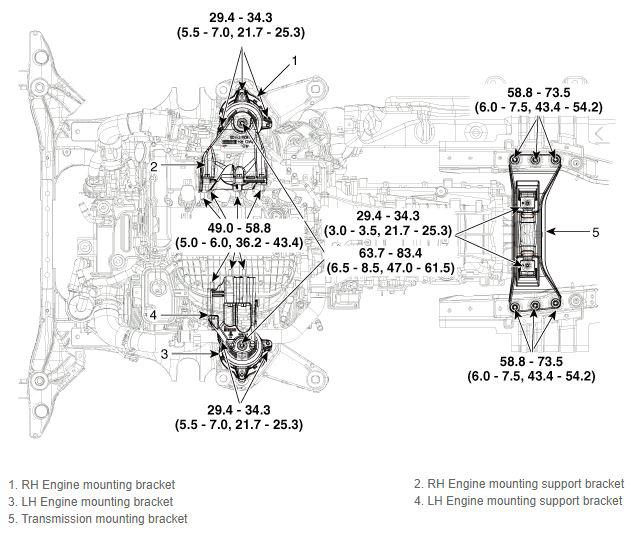

Fig 1: Engine Mounting Components Location With Torque Specifications (2WD)
G15546699Courtesy of HYUNDAI MOTOR AMERICA
