Repair Procedures: Installation

  1. Disconnect the negative (-) battery terminal.
    WARNING:
    • Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Place a passenger airbag (A) on the crash pad and tighten the passenger airbag mounting bolts.

    Tightening torque:

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

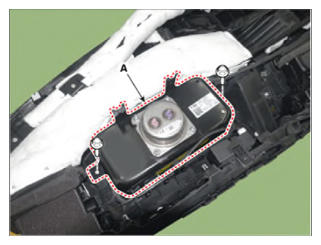

    G15548922Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the main crash pad.

    (Refer to Body (Interior and exterior) - "MAIN CRASH PAD ASSEMBLY ")

  4. Connect the passenger airbag connector (A).

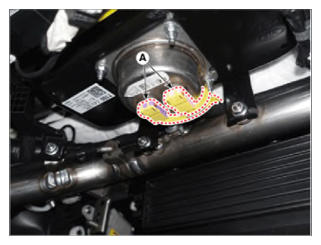

    G15548923Courtesy of HYUNDAI MOTOR AMERICA
  5. Reconnect the battery negative (-) terminal.
  6. After installing the passenger airbag, confirm proper system operation.
    NOTE:
    • Turn the ignition switch ON; the SRS indicator light should turn on for about 3-6 seconds and then go off.
