Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate trim.

    (Refer to Body - "LIFTGATE TRIM ")

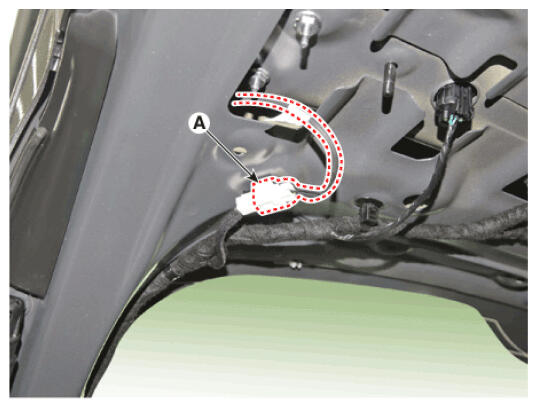

  3. Remove the anti-pinch strip sensor connector (A).
    G16856068Courtesy of HYUNDAI MOTOR AMERICA

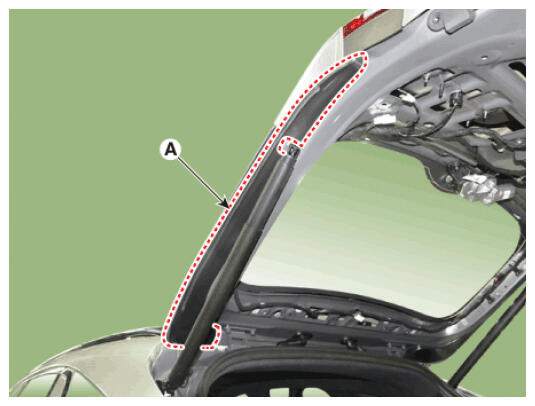

  4. Remove the anti-pinch strip (A) after removing the clips.
    G16856069Courtesy of HYUNDAI MOTOR AMERICA
