Home › Genesis › 2024 › GV70 2.5T Advanced › Repair and Diagnosis › Electrical › Body Electrical › Wireless Power Charger System › Description And Operation › System Configuration Diagram

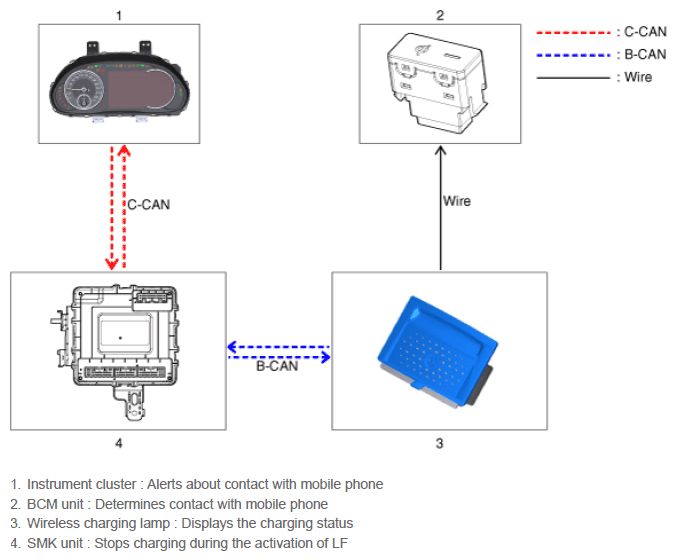

System Configuration Diagram

G16856282Courtesy of HYUNDAI MOTOR AMERICA
