Components And Components Location: Components

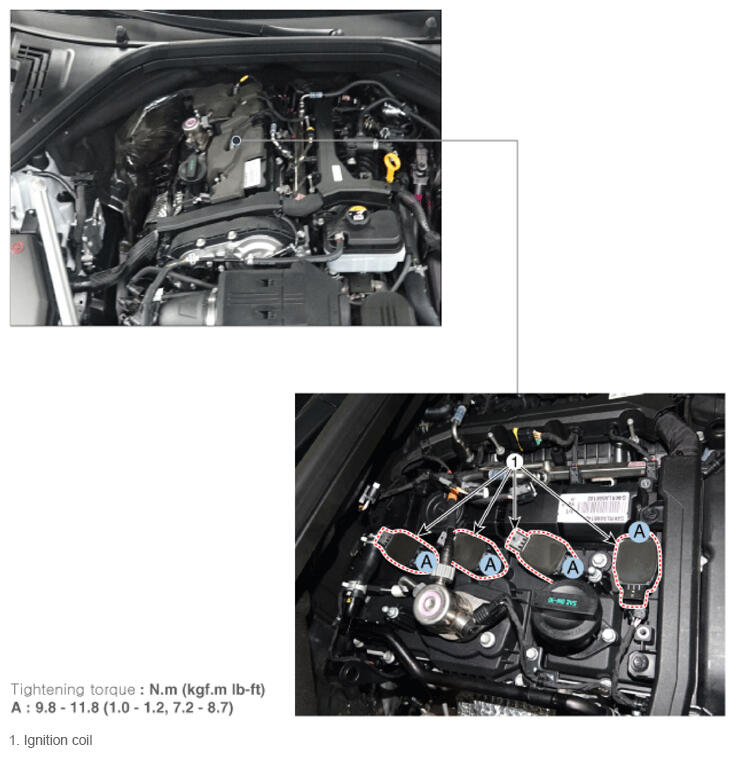

Fig 1: Ignition Coil Components Location With Torque Specifications
G16846796Courtesy of HYUNDAI MOTOR AMERICA
