Steering Wheel Play Inspection

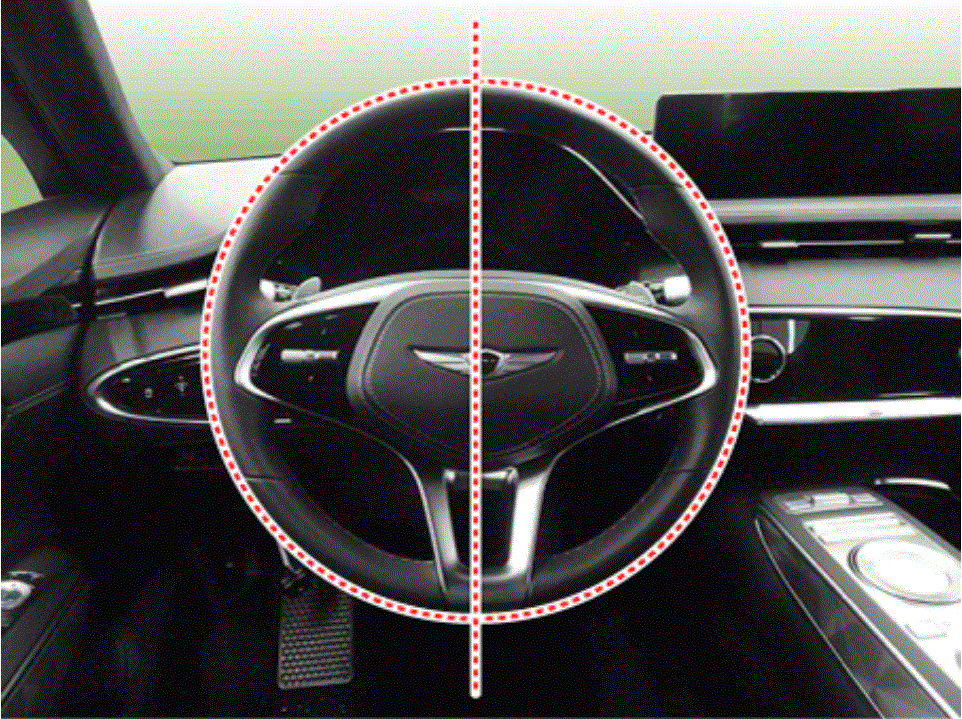

- Turn the steering wheel so that the front wheels can face straight ahead.

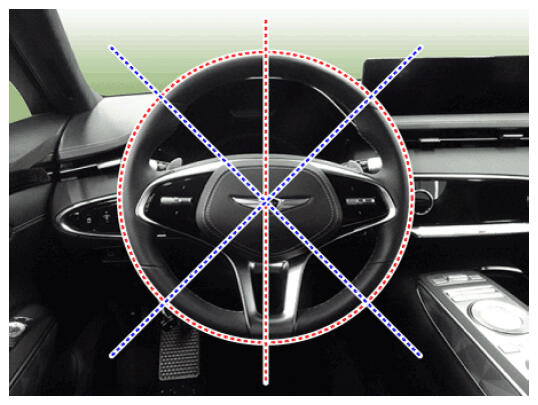

- Mark the center of the steering wheel.

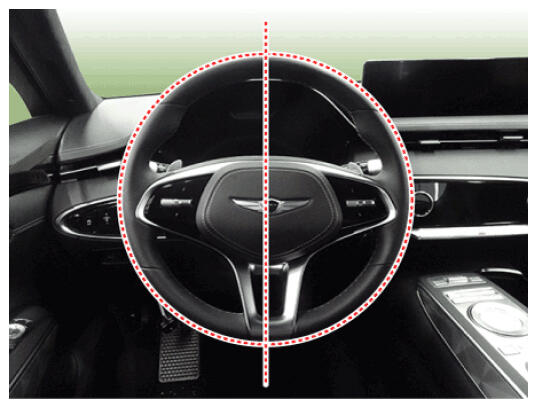

- Measure the distance that the steering wheel can be turned with out moving the front wheels.
Standard value: 0 - 30 mm (1.1811 in.) or less
- If the play exceeds standard value, inspect the steering column, shaft, and linkages.
