Creation condition and calibration method

  1. In case of replacing the transfer case only.
    • Perform "the clutch learning reset" procedure.

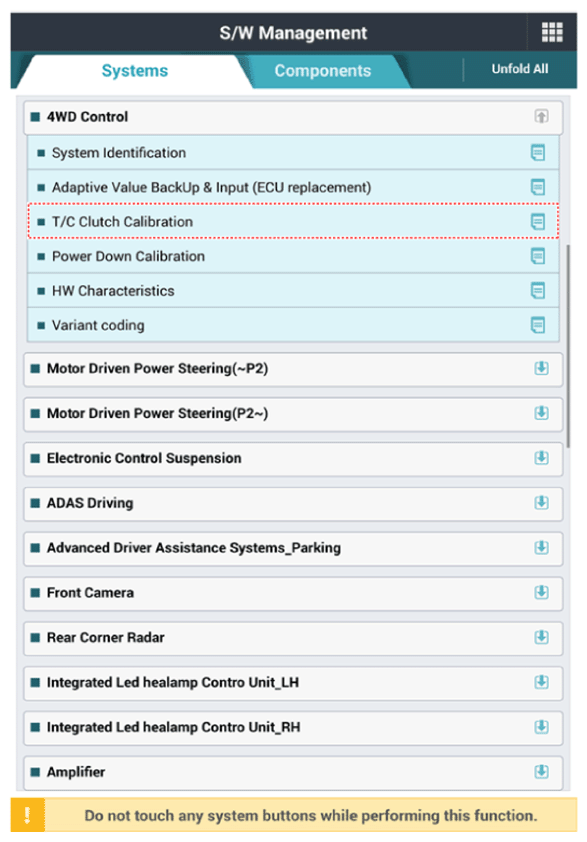

G16847481Courtesy of HYUNDAI MOTOR AMERICA

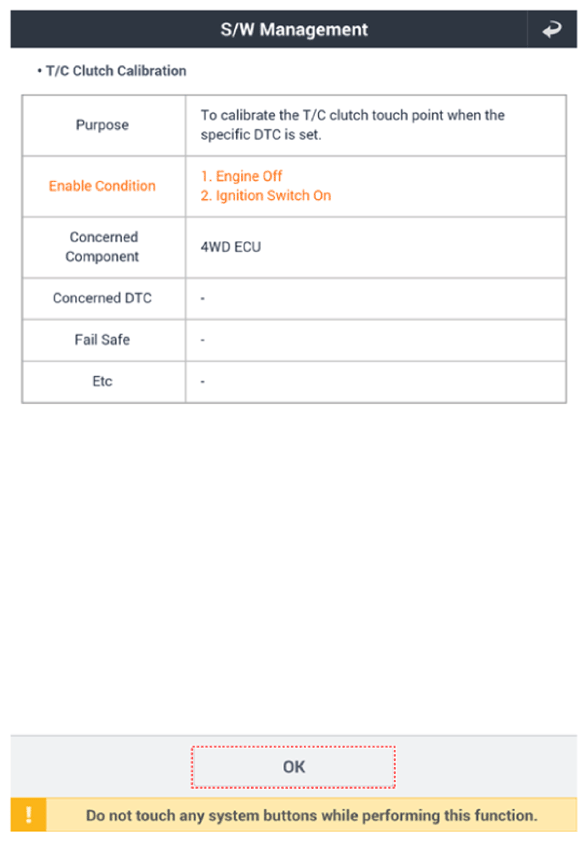

G16847482Courtesy of HYUNDAI MOTOR AMERICA

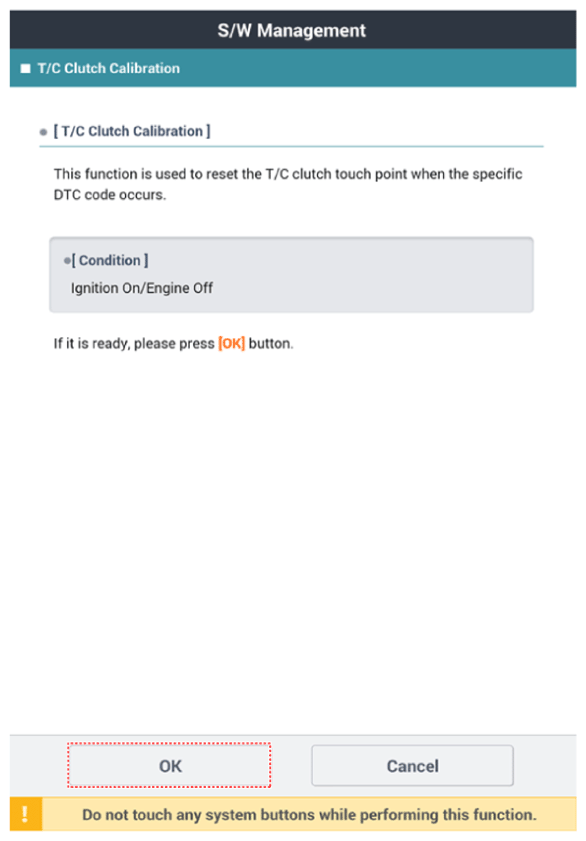

G16847483Courtesy of HYUNDAI MOTOR AMERICA

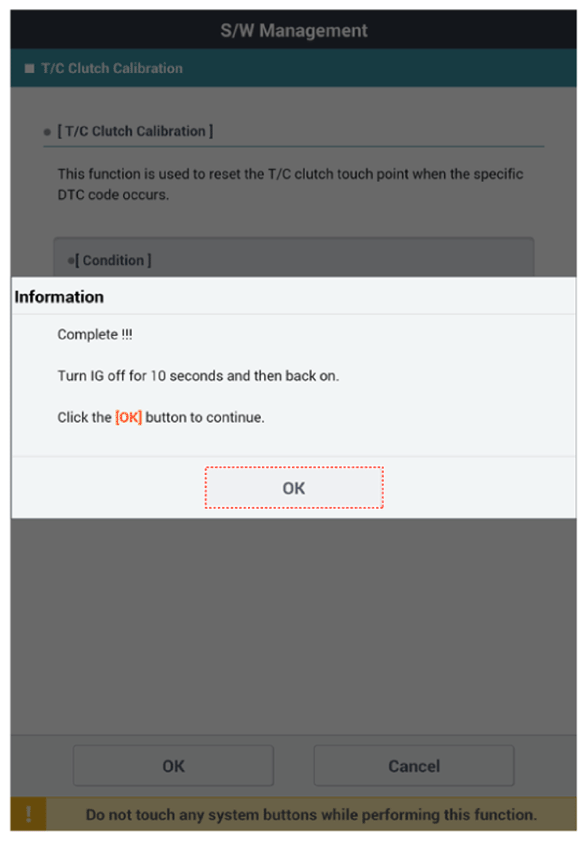

G16847484Courtesy of HYUNDAI MOTOR AMERICA
