Diagnostic Flowchart

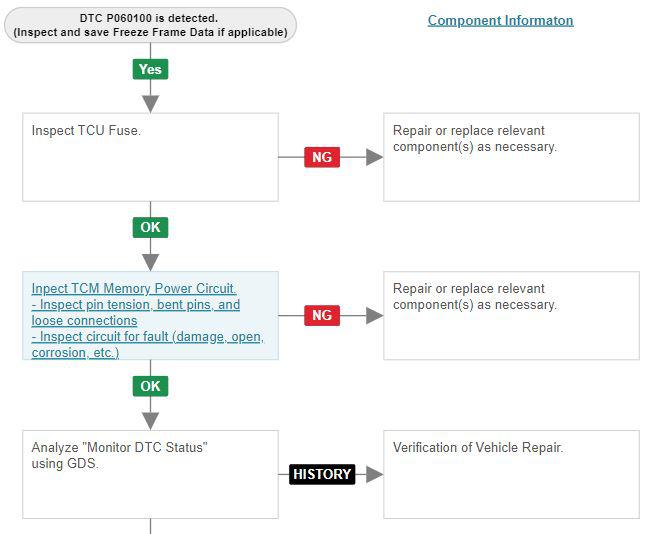

Fig 1: P0601-00 (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

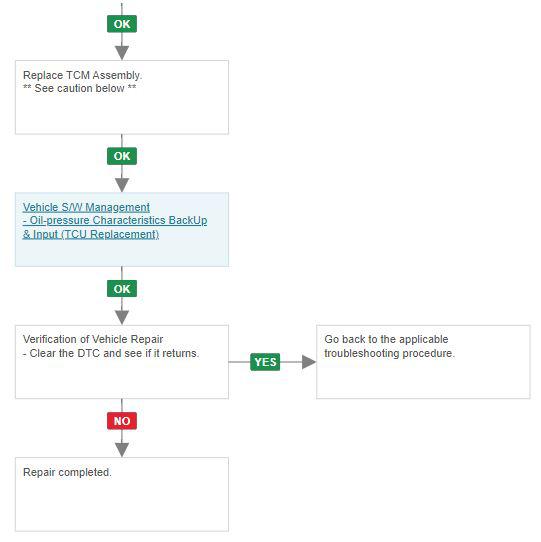

Fig 2: P0601-00 (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: When the TCM is replaced, make sure to use the S/W Management Menu and peforem all learned value options in the Engine and Transmission Sub-Menus.
