Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the tailgate trim.

    (Refer to Liftgate Trim Body - "Tailgate Trim")

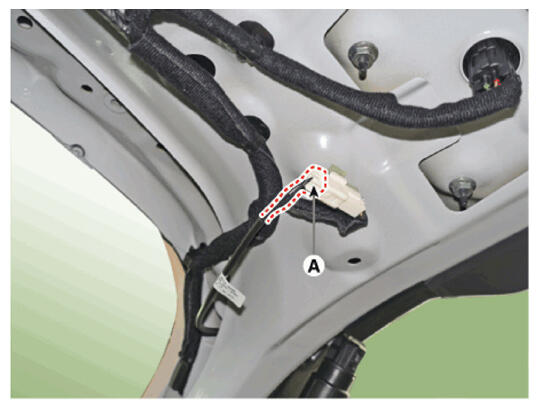

  3. Remove the anti-pinch strip sensor connector (A).
    G16774752Courtesy of HYUNDAI MOTOR AMERICA

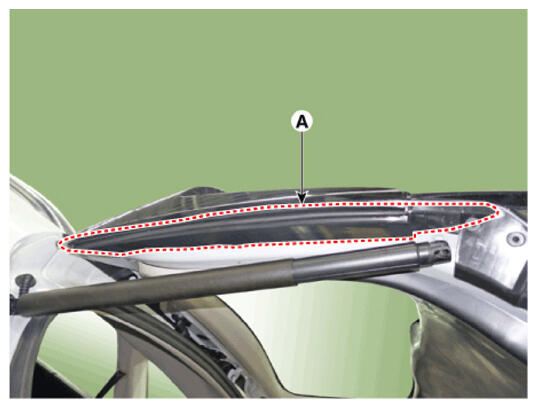

  4. Remove the anti-pinch strip (A) after removing the clips.
G16774753Courtesy of HYUNDAI MOTOR AMERICA
