Repair Procedures: Replacement

CAUTION:

Take care not to bend or scratch the trim and panels.
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

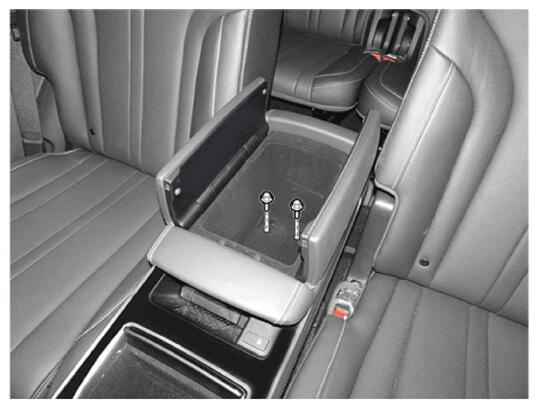

Remove the rear console armrest tray (A).

Courtesy of HYUNDAI MOTOR AMERICA

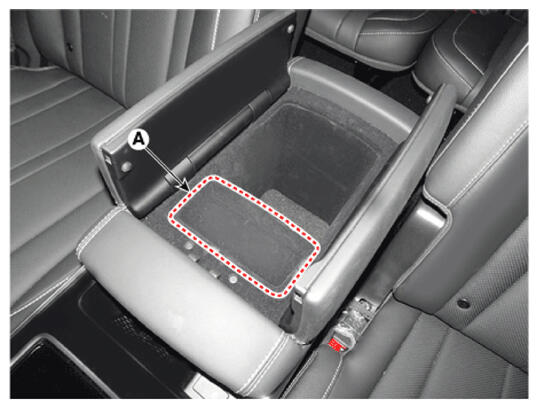

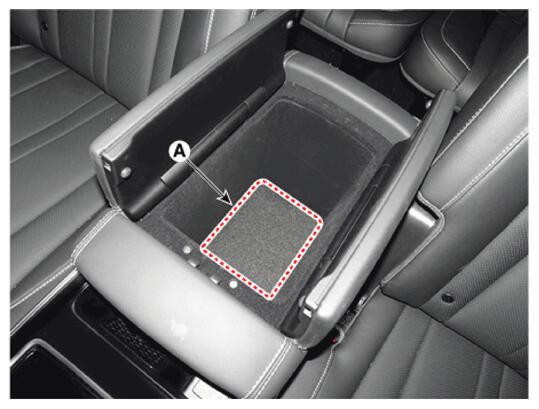

Remove the rear console armrest mat (A).

Courtesy of HYUNDAI MOTOR AMERICA

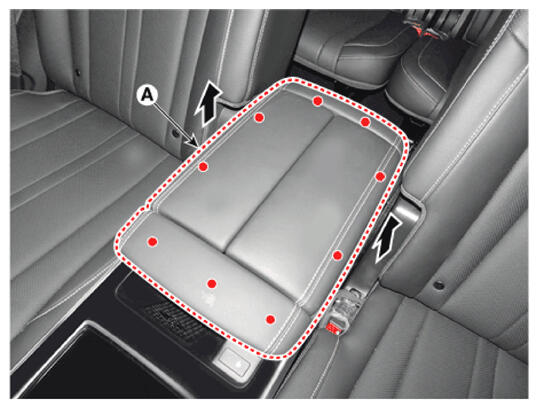

Loosen the mounting bolts and remove the rear console armrest cover assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

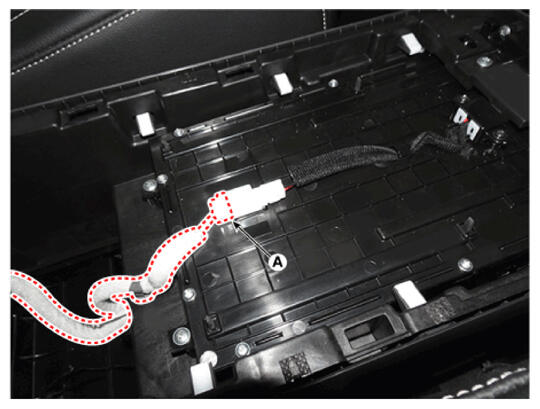

Disconnect the rear console armrest connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

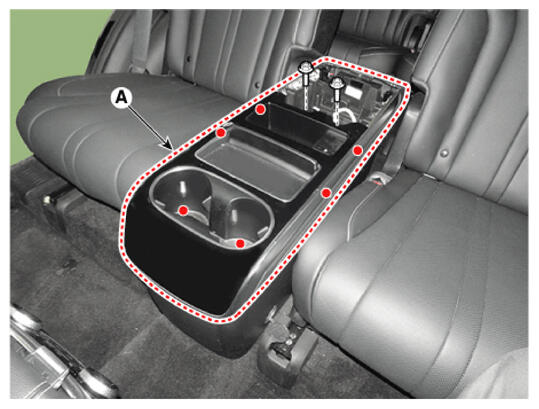

Loosen the mounting bolts and remove the rear console upper assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA

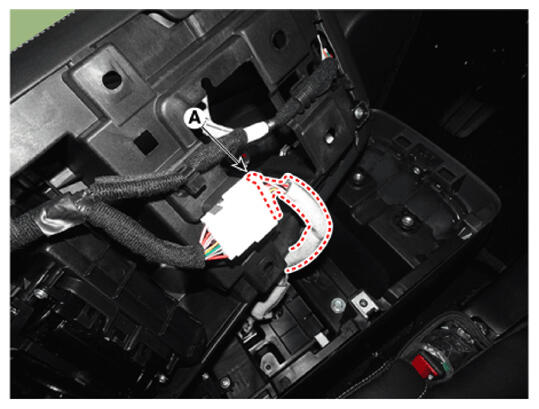

Disconnect the rear console upper assembly connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

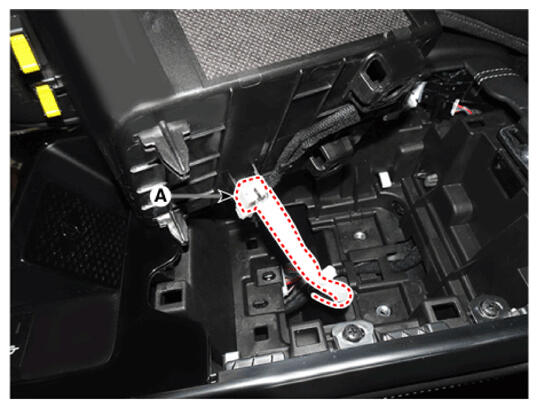

Disconnect the rear console assembly lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

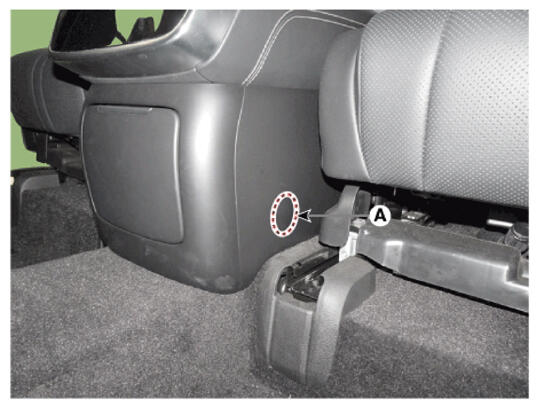

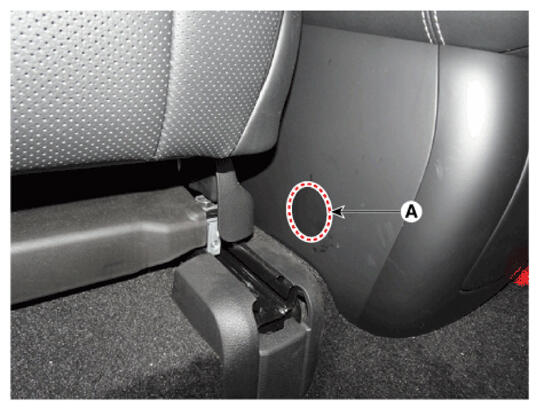

Remove the rear console assembly bolt cover (A).
[RH]

Courtesy of HYUNDAI MOTOR AMERICA

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

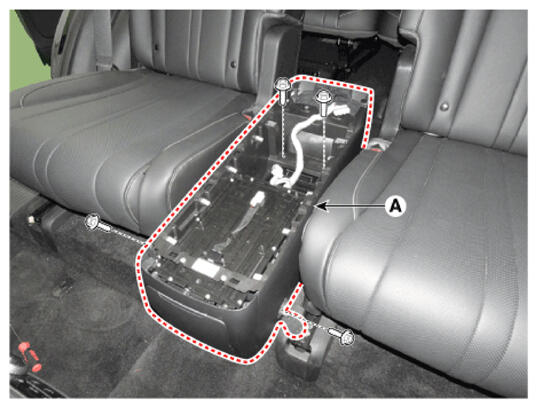

Loosen the mounting bolts and remove the rear console assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
