Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Remove the front seat shield outer cover.
(Refer to Front Seat - "FRONT SEAT OUTER SHIELD COVER ")
- Remove the front seat shield inner cover.
(Refer to Front Seat Shield Inner Cover Front Seat - "Front Seat Inner Shield Cover")

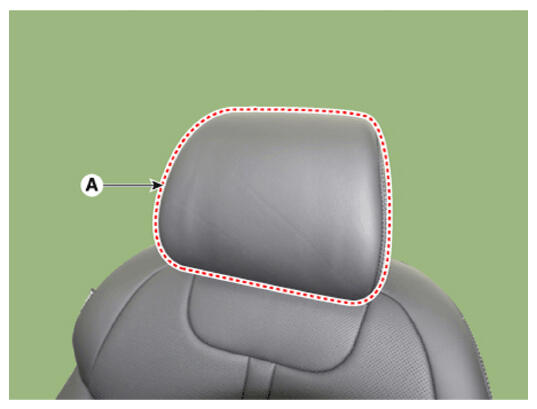

- Push the lock pin, remove the front seat headrest (A).
- Remove the front seat lower protector (A).

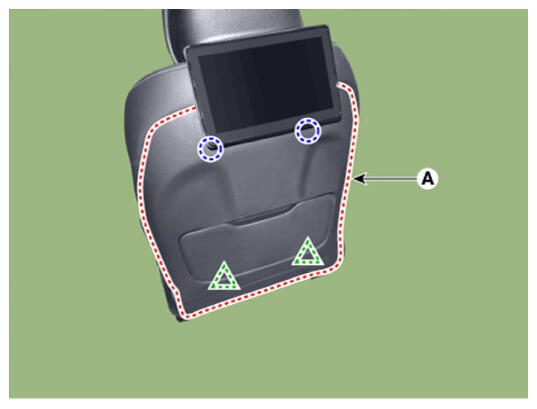

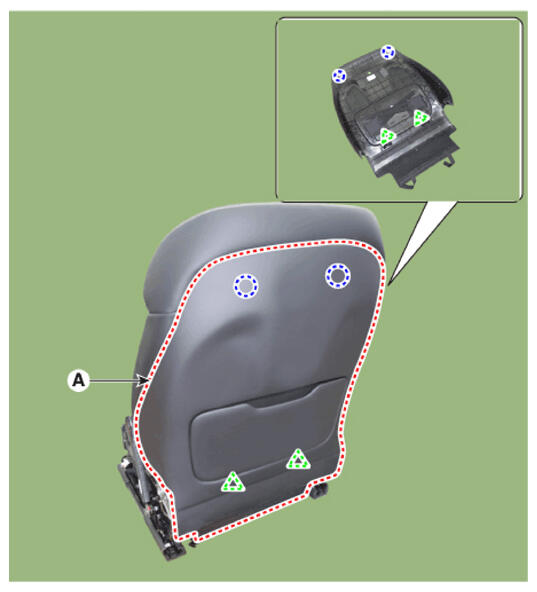

- Remove the front seat back board (A).NOTE:
- Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
- Be careful not to damage the fixing clips.
[STD]
[OPT]

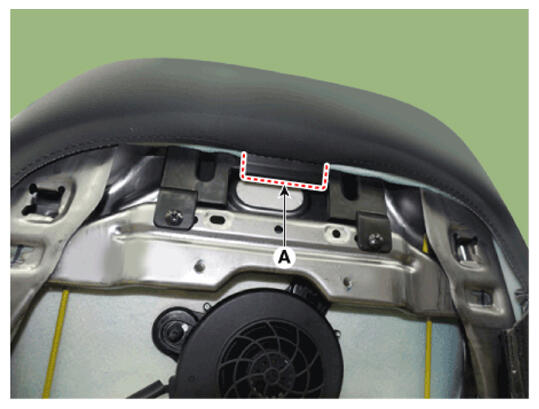

- Remove the front seat upper protector (A).

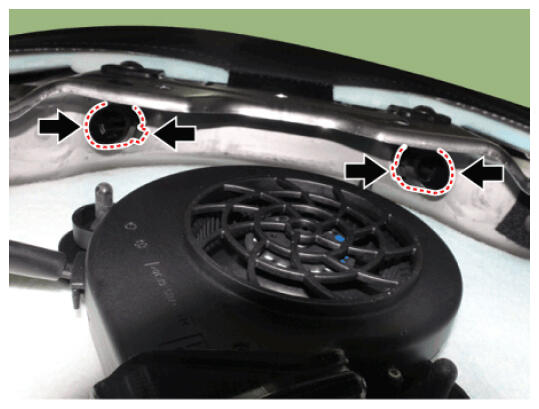

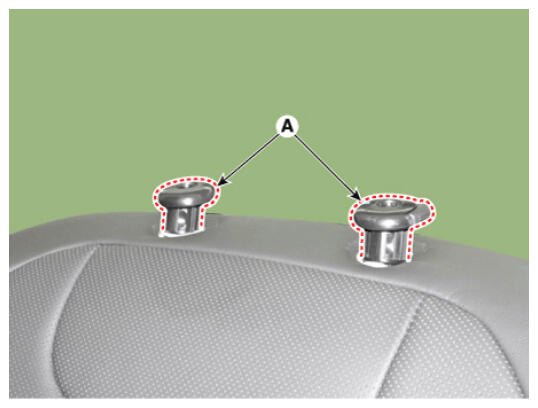

- Turn the front seat back cover inside out. Then pull out the headrest guides (A) while pinching both side of the lower part of the guides, and remove them.

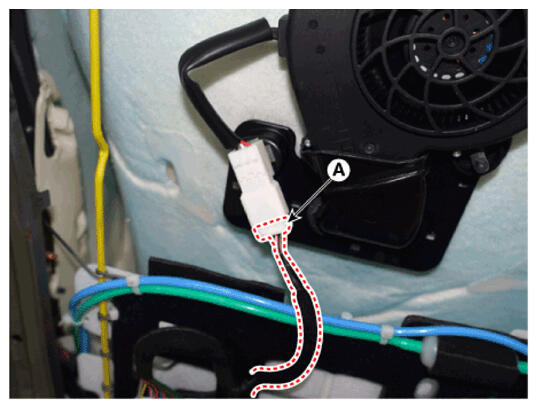

- Separate the connector (A).

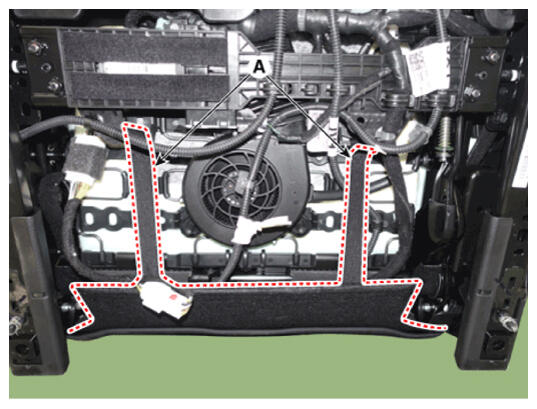

- Remove the protector (A) from the front seat back frame.
Information

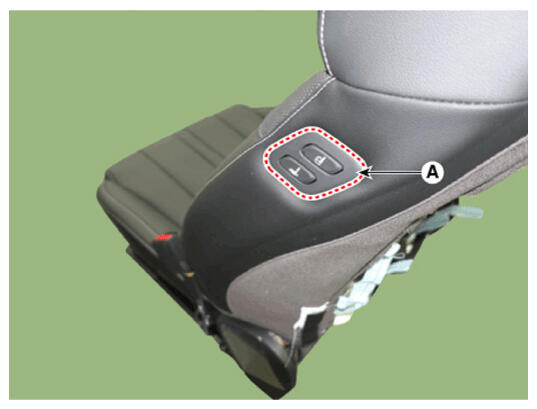

- In case of the passenger seat, remove the walk-in switch (A) and then remove the seat back cover.

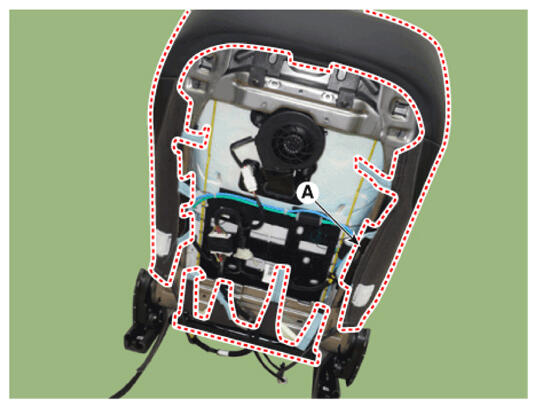

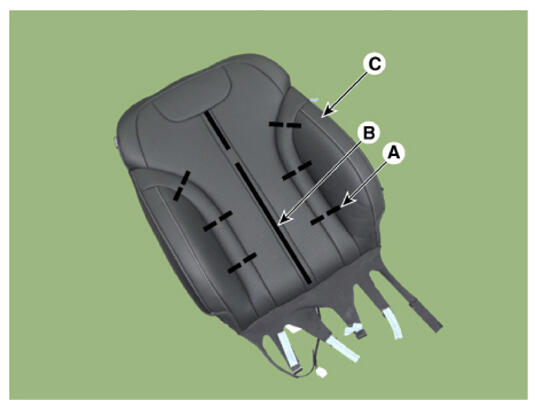

- Remove the velcro tape (A) and hog-ring clips (B) inside the front seat back cover and remove the seat back cover (C).
- To install, reverse removal procedure.
Information
- Make sure that the connectors are connected completely
- Replace any damaged clips (or pin-type retainers).

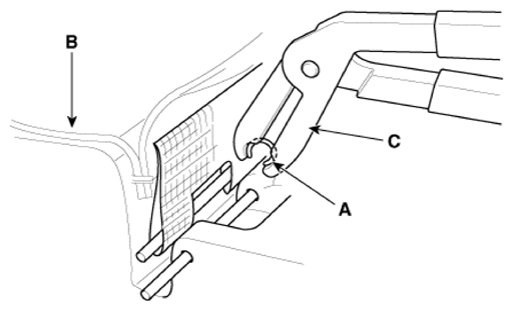

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
