Repair Procedures: Replacement
- Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")

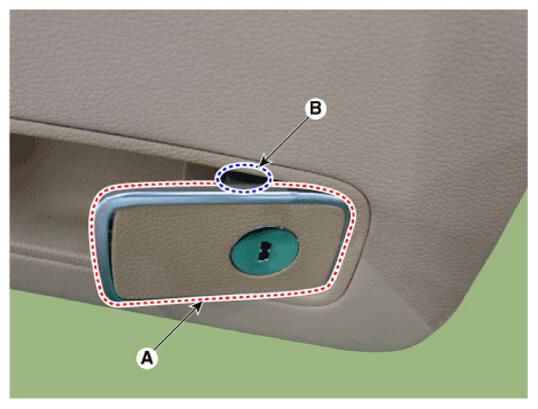

- Lift the knob (A) outward until the service hole (B) at the bottom of the glove box is visible.NOTE:
- Even if the knob is pulled all the way out, the service hole is located further inside and may damage the glove box.

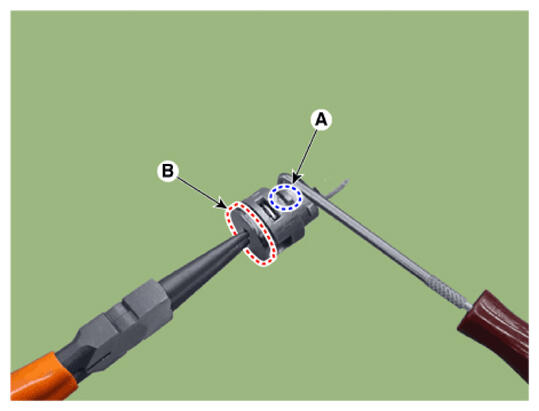

- Insert the L-shaped tool into the service hole, press the lock pin (A), and remove the glove box key barrel assembly (B).
Information

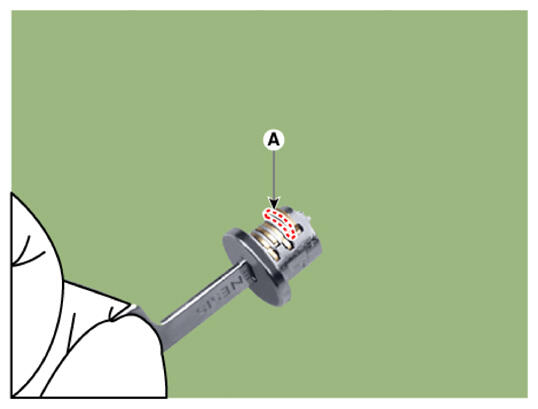

- Glove box key barrel lock pin (A)
- Install in the reverse order of removal.
Information
- If the glove box is damaged, replace the glove box assembly.
