Components And Components Location: Components

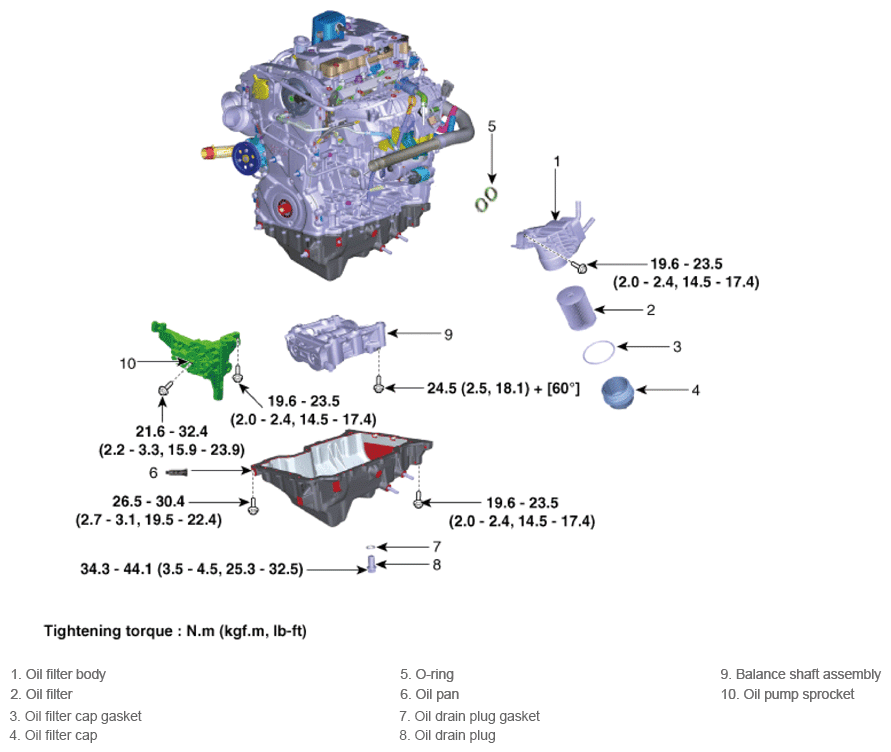

Fig 1: Lubrication System Components Location With Torque Specification
G16769458Courtesy of HYUNDAI MOTOR AMERICA
