Repair Procedures: Disassembly

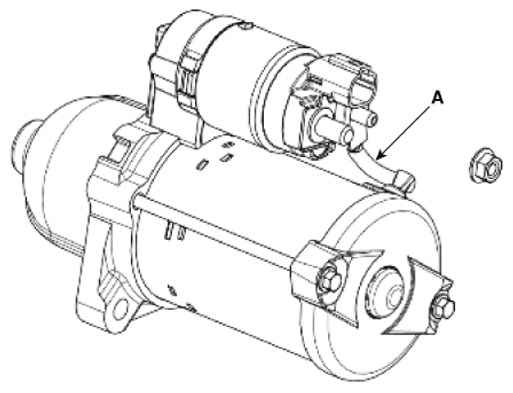

  1. Disconnect the M-terminal (A) on the magnet switch assembly.
    G16769644Courtesy of HYUNDAI MOTOR AMERICA

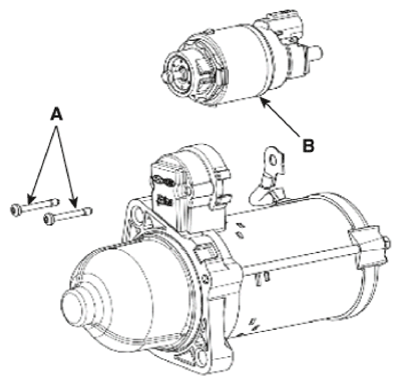

  2. After loosening the screws (A), detach the magnet switch assembly (B).
    G16769645Courtesy of HYUNDAI MOTOR AMERICA

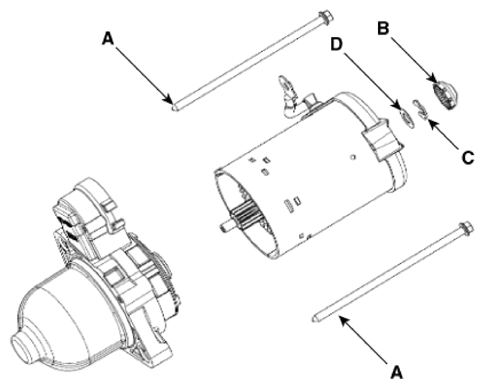

  3. Loosen the through bolts (A) and then remove the rear cap (B), stop washer (C), adjust washer (D).
    G16769646Courtesy of HYUNDAI MOTOR AMERICA

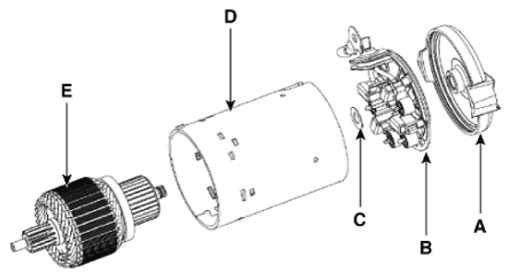

  4. Disconnect the rear bracket (A), brush holder (B), adjust washer (C), yoke (D), amature (E).
    G16769647Courtesy of HYUNDAI MOTOR AMERICA

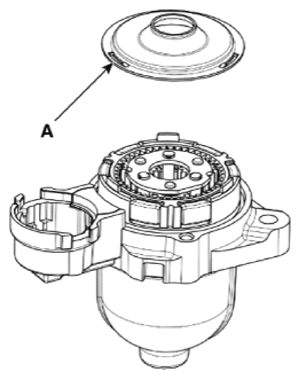

  5. Remove the gasket sheet (A).
    G16769648Courtesy of HYUNDAI MOTOR AMERICA

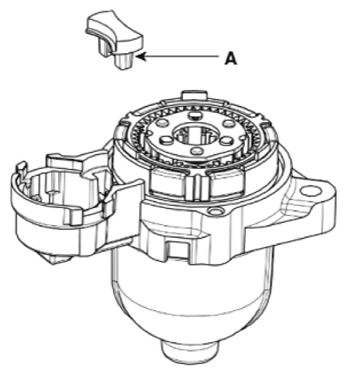

  6. Disconnect the lever rest (A).
    G16769649Courtesy of HYUNDAI MOTOR AMERICA

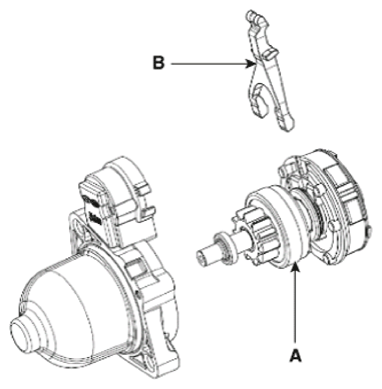

  7. Remove the reducer assembly (A) and lever (B).
    G16769650Courtesy of HYUNDAI MOTOR AMERICA

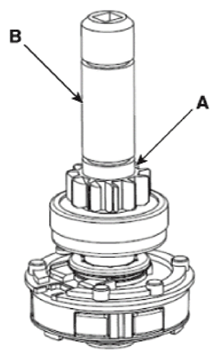

  8. Press the stopper (A) using a socket (B).
    G16769651Courtesy of HYUNDAI MOTOR AMERICA

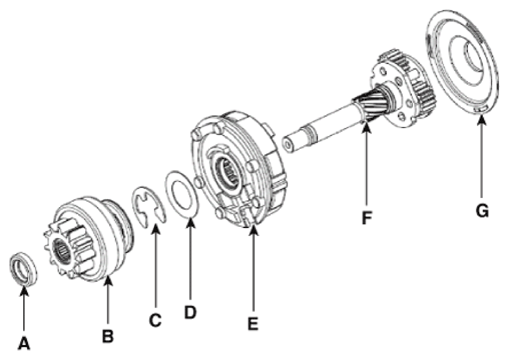

  9. Disconnect the stopper (A), overrunning clutch (B), stopper (C), stop washer (D), ring gear (E), drive shaft assembly (F), gasket seat (G).
    G16769652Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).
  10. Reassembly is the reverse of disassembly.
