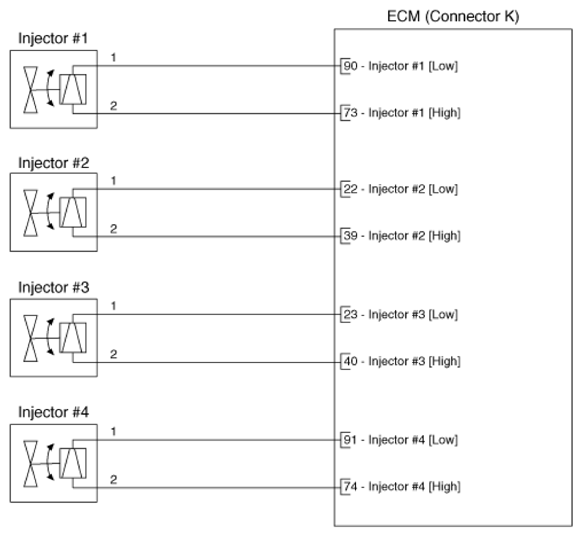

Home › Genesis › 2024 › GV80 2.5T Advanced › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5L › Injector › Schematic Diagrams › Circuit Diagram › GDI Injector
