Connector assembly status test

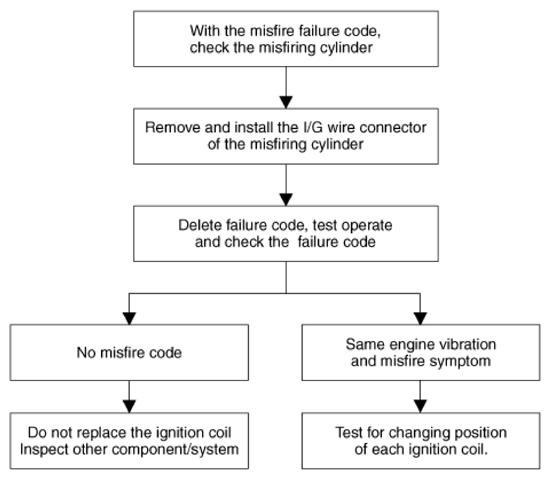

Connector assembly status test

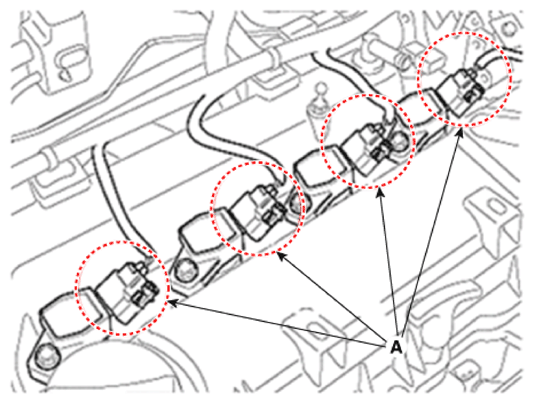

Remove the connector (A) and reinstall it.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
