Engine Control System Diagnosis - 2.5L (2 Of 6)
›
DTC P013F-00: O2 Sensor Delayed Response - Lean To Rich Bank 1 Sensor 2
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

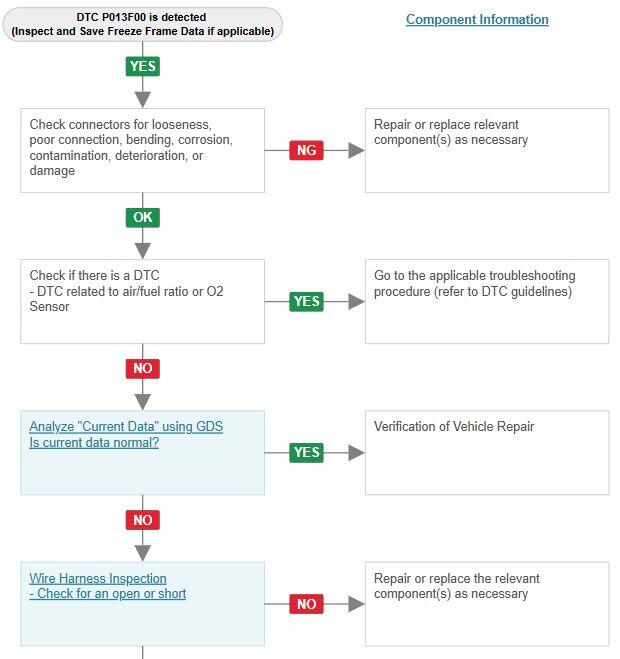

Fig 1: P013F-00 (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: P013F-00 (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
