Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Hyundai Elantra N. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to bend or scratch the bumper cover and panels.

Disconnect the battery (-) terminal

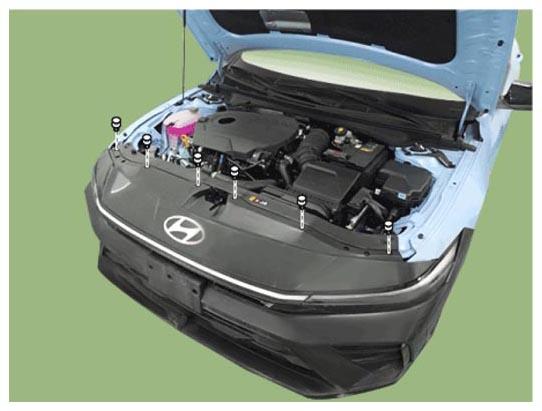

Remove the front bumper upper mounting clips.

Courtesy of HYUNDAI MOTOR AMERICA

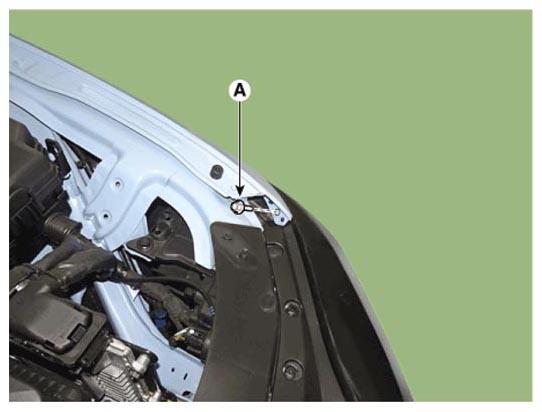

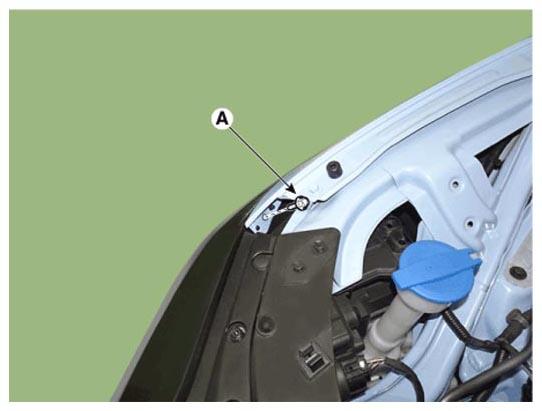

Remove the front bumper upper mounting bolts.
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

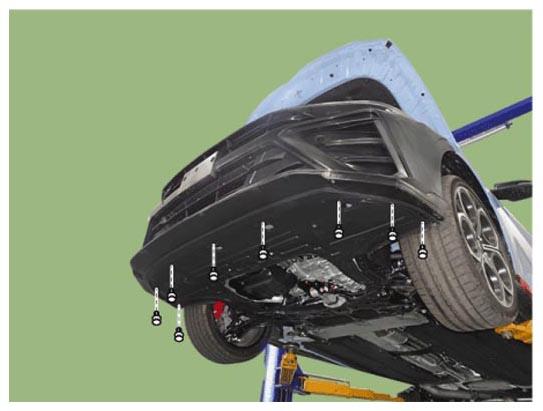

Remove the front bumper lower mounting clips.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the tabs on the side part of front bumper (A).

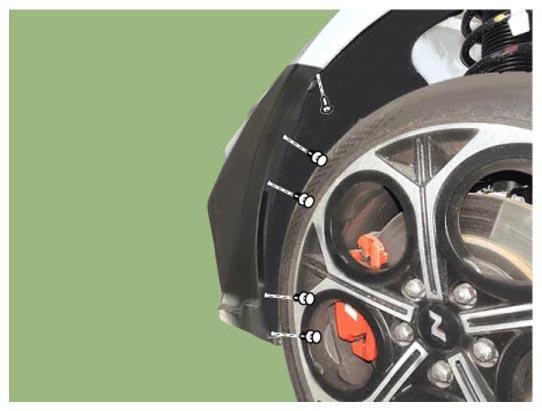

After removing the pin-type retainers and screws on the side of front bumper (A), detach the side part of front bumper.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

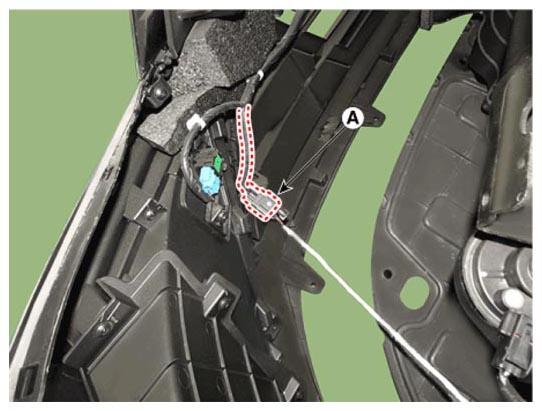

Disconnect the front bumper main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

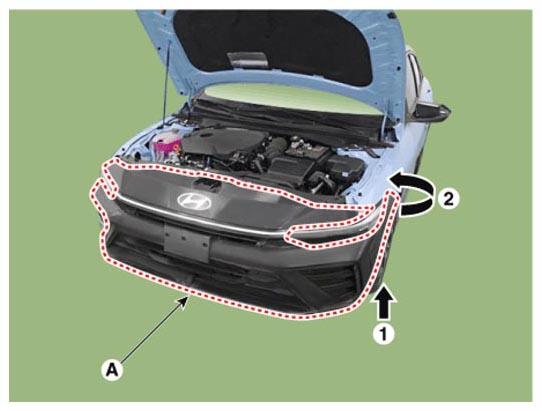

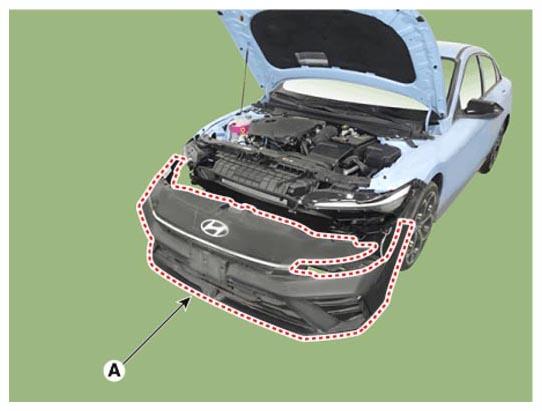

Remove the front bumper assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.

Information

Make sure the connector is connected properly.
Replace any damaged clips (or pin - type retainers).
