Repair Procedures: Disassembly

Information

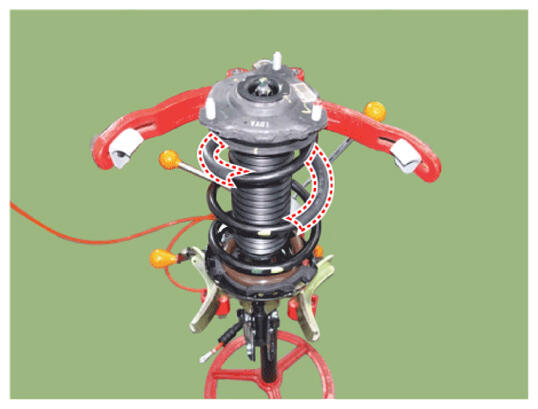

• When compressing the coil spring, be cautious as there may be corrosion due to damage to the coil spring painting.

  In order to avoid such painting damage, compress by putting over the waste hose, etc. (Refer to the picture below.)

Courtesy of HYUNDAI MOTOR AMERICA

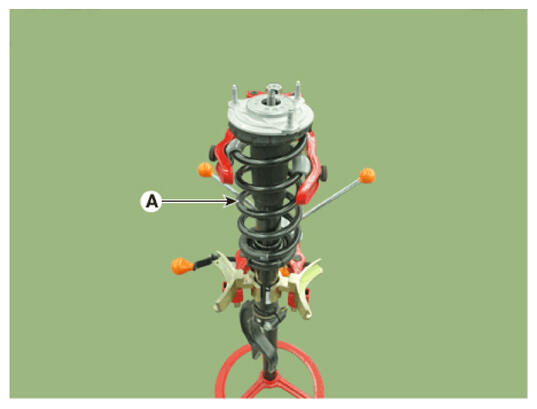

1. Using the spring compressor, compress the coil spring (A).

   Do not compress the spring more than necessary.

   Courtesy of HYUNDAI MOTOR AMERICA

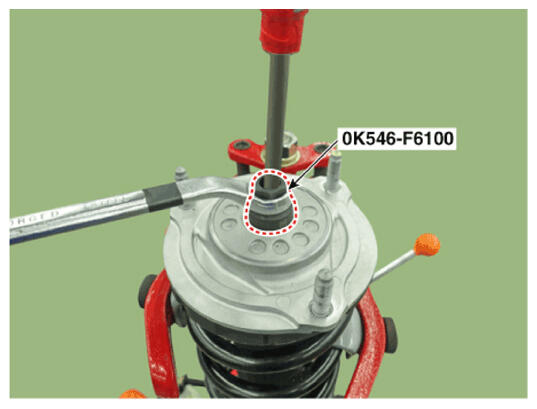

2. Using the SST (09546-F6100), loosen the self locking nut.

   Courtesy of HYUNDAI MOTOR AMERICA

3. Remove the insulator assembly, coil spring and upper pad from the shock absorber.
