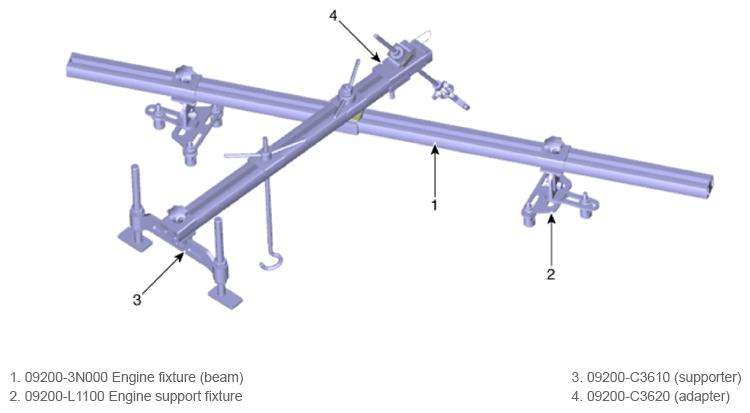

Engine Support Fixture Assembly Drawing

Courtesy of HYUNDAI MOTOR AMERICA

Information

• When using the adapter (09200-C3620), check the specified angle for each engine type.

Gasoline 2.5 FR T-GDI (A:30°)	Gasoline 3.5 FR T-GDI (B:40°)
