Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

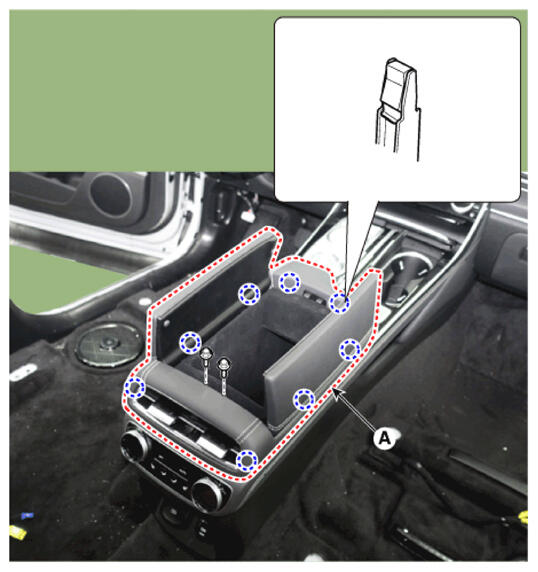

Remove the upper console assembly (A) after loosening mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA

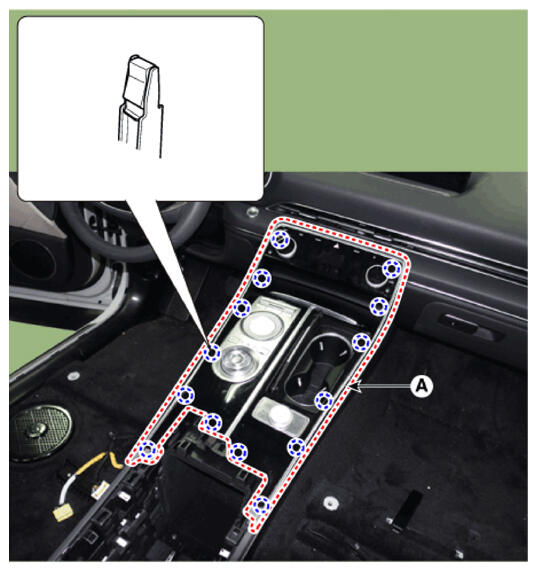

Using a remover, remove the console upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

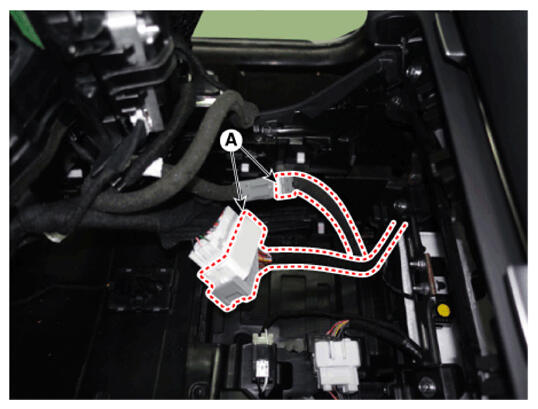

Disconnect the console upper cover connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

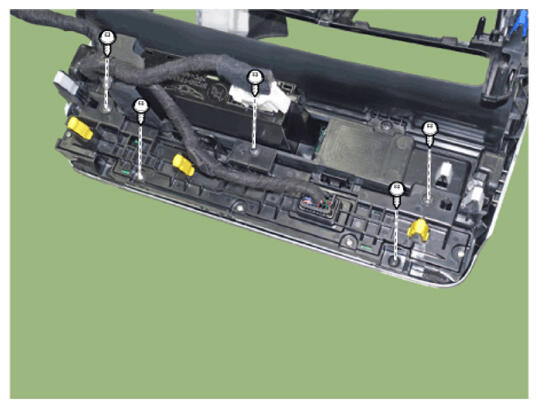

Disconnect the keyboard connector and then remove the AVN keyboard assembly after loosening mounting screws.
